Imaging plate reader module
C15082
Compact imaging plate reader module with high resolution and high speed
This product is a module optimized for reading of imaging plates (IP) in CR (computed radiography).
Fluorescent light generated by irradiating the IP with the excitation laser scanned by the MEMS mirror is then received by the highly sensitive detector MPPC. This product consists of a laser scan engine, MPPC assembly, and driver circuit, which all built-in a compact housing. These parts are optically adjusted with high precision, resulting in a high S/N ratio and image resolution.
Features
- High resolution:
12 LP/mm to 14 LP/mm (high resolution mode)
11 LP/mm to 12 LP/mm (standard mode)
- High-speed reading: 3.6 s (standard mode)
- High S/N ratio
- Ultra-compact: 75 mm × 60 mm × 34 mm
Notice

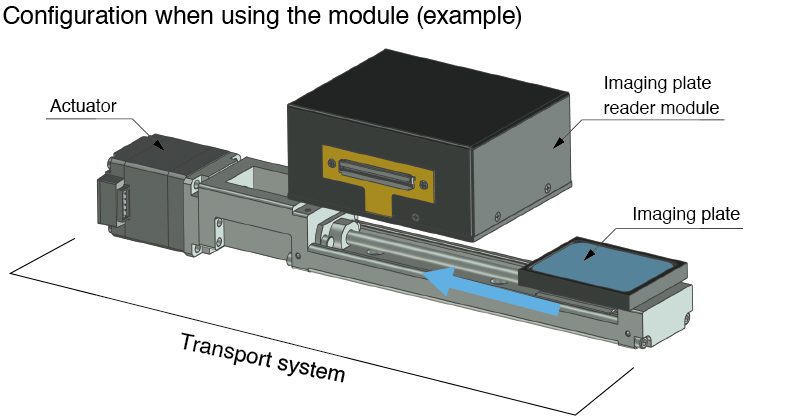

本イメージングプレートリーダモジュールは、1次元スキャンを行う製品です。2次元画像の取得のためには、右図のようなイメージングプレートを搬送する機構が必要です。搬送機構につきましては、お客様側でご用意ください。なお、初期評価用として、搬送機構を備えたデモ機 (評価用装置)を用意しています。ご希望の際は、弊社営業までお問い合わせください。
The imaging plate reader module is an optical module that performs one-dimensional scanning. This product is designed to be integrated into CR systems such as IP scanners, so it cannot capture two-dimensional images on its own. To capture two-dimensional images, peripheral mechanisms such as a transport system for conveying the imaging plate and data communication circuits are required separately. These must be designed and provided by the customer side.
For initial evaluation purposes, a demo unit (evaluation device) equipped with a transport system is available. Please contact our local sales office if you have any requests.
Specifications
| Command interface | SPI |
|---|---|
| Image data A/D resolution | 16 bit |
| Image data Output method | Parallel bus |
| Peak emission wavelength (typ.) | 660 nm |
| Compatible IP size | 0/1/2/3 |
| Number of pixels (Standard mode, IP size 0/1/2 compatible) | 900 × 1300 |
| Number of pixels (Standard mode, IP size 3 compatible) | 900 × 1600 |
| Number of pixels (High resolution mode, IP size 0/1/2 compatible) | 1440 × 2080 |
| Number of pixels (High resolution mode, IP size 3 compatible) | 1440 × 2600 |
Dimensional outline (unit: mm)
