Spot light source LC8
L9588
Hamamatsu spot light sources employ long life, high intensity mercury-xenon lamps and optical systems specifically designed to minimize light loss. Our UV spot light sources have gained a solid reputation for long life and high power and now fill a vital role in different fields, especially in FA (factory automation). UV spot light sources generate less heat and so are ideal for UV curing in bonding of micro components and optical components vulnerable to heat.
L9588 series offers: Light Guide Port and Operation Panel in Front. Lamp Replacement Position in Rear.
L9566 series offers: Light Guide Port in Rear. Operation Panel and Lamp Replacement Position in Front.
Control
| Control | Front panel control | Communication connector (RS-232C) |
External control terminal (D-sub connector) |
|
|---|---|---|---|---|
| Main power ON / OFF | 〇 | － | － | |
| Lamp ON / OFF | 〇 | 〇 | 〇 | |
| Shutter drive | Open / Close | 〇 | 〇 | 〇 |
| Auto open / close by timer (*1) | 〇 | 〇 | 〇 | |
| Auto shutter time setting | 〇 | 〇 | － | |
| Irradiation program (Memory Step) setting | 〇 | 〇 | － | |
| Optical power adjustment (UP / DOWN) | 〇 | 〇 | 〇 | |
| Lamp ON indicator | 〇 | 〇 (Signal output) | 〇 (Signal output) | |
| Lamp stability indicator | 〇 | 〇 (Signal output) | 〇 (Signal output) | |
| Shutter open indicator | 〇 | 〇 (Signal output) | 〇 (Signal output) | |
| Lamp operation hour meter | 〇 | 〇 | － | |
| Overheat alarm | 〇 | 〇 (Signal output) | 〇 (Signal output) | |
| Lamp operation time alarm | 〇 | 〇 (Signal output) | 〇 (Signal output) | |
| Operating switch for power saving mode (*2) | － | － | － | |
*1: Corresponds to "start / stop" of Memory Step.
*2: The operating switch is inside
Selection guide
| Type | Type No. (*1) | Spectral distribution (*2) | Lamp for maintenance (*3) | Guaranteed life |
|---|---|---|---|---|
| 365 nm type | L9566-01A-□□ L9588-01A-□□ |
300 nm to 450 nm | L10852 | 4000 h (at 365 nm) |
| 250 nm band enhanced type | L9566-02A-□□ L9588-02A-□□ |
240 nm to 400 nm | L10852 | 4000 h (at 365 nm) |
| Visible light type | L9566-03-□□ L9588-03-□□ |
400 nm to 700 nm | L14753 | 2000 h (at 436 nm) |
| Total reflection type | L9566-04-□□ L9588-04-□□ |
300 nm to 800 nm | L14753 | 2000 h (at 436 nm) |
| 365 nm wide band type | L9566-06A-□□ L9588-06A-□□ |
240 nm to 550 nm | L10852 | 4000 h (at 365 nm) |
*1: The square symbol □ in each type number indicates a suffix that represents the specifications of the AC cable.
C1: For Japan, C2: For North America, C3: For Europe, C4: For China, C5: For UK
*2: Major spectral distribution. Various optical filters (sold separately) can also be attached. Refer to the spectral distribution graph for details on the spectral distribution.
*3: L10852 is 200 W super-quiet mercury-xenon lamp. L14753 is 150 W super-quiet xenon lamp (low ozone type).
Specifications
| Parameter | L9566 | L9588 |
|---|---|---|
| Light guide port | Rear | Operation panel (front) |
| Lamp replacement position | Operation panel (front) | Rear |
| UV irradiance (Typ.) (*1) | 4500 mW/cm2 (at 365nm, -01A) | |
| Spectral distribution | Refer to the Selection guide | |
| Lamp for maintenance | Refer to the Selection guide | |
| Guaranteed life | Refer to the Selection guide | |
| Input voltage (AC) | 100 V to 240 V (100 V / 200 V auto switching), single phase 47 Hz to 63 Hz | |
| Power consumption (Typ.) | 280 VA | |
| Weight | Approx. 6.4 kg | |
| Operating temperature range | +5 ℃ to +35 ℃ | |
| Operating humidity range | Less than 80 % (no condensation) | |
| Storage temperature range | -10 ℃ to +70 ℃ | |
| Storage humidity range | Less than 80 % (no condensation) | |
*1: UV irradiance (at 365 nm) is measured in the center at a point 10 mm away from the output end of the A10014-35-0110 light guide (sold separately) with E5147-04, by using the Hamamatsu C6080-365 UV power meter.

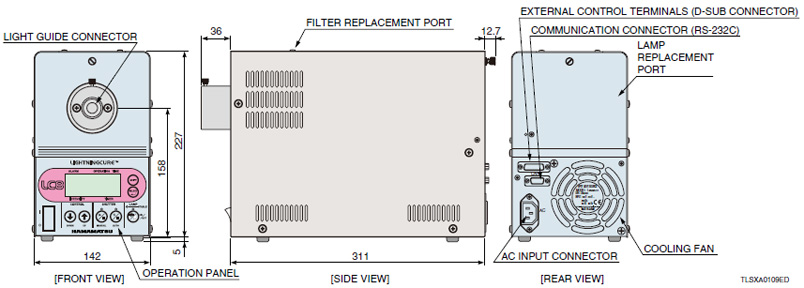

Dimensional outline (Unit: mm)
