Microfocus X-ray source

L12161-07

Tube voltage : 40 kV to 150 kV, Maximum output : 75 W, X-ray focal spot size : 5 um (at 4 W), Serial port control : RS-232C



X-ray source for non-destructive inspection of electrical devices, mount boards, automotive parts, etc.

Features

  • Focal spot size: 5 μm (at 4 W)
  • High power: Maximum output 75 W
  • External control via RS-232C interface
  • High speed ramping-up
  • No high voltage cable connection required

Applications

  • Non-destructive inspection
  • X-ray CT

[Applicable objects]

  • Semiconductor device
  • Electronic component
  • Printed circuit board
  • Ceramic
  • Plastic component
  • Die casting
  • Metal component

Specifications

Tube Voltage 150 kV
Type Sealed type
Tube Voltage Operational Range 40 kV to 150 kV
Maximum Output 75 W
X-ray Focal Spot Size 5 μm (at 4 W)
X-ray Beam Angle (Coned) 43 degree
Focus to Object Distance (FOD) 17 mm

Dimensional outlines (Unit mm)

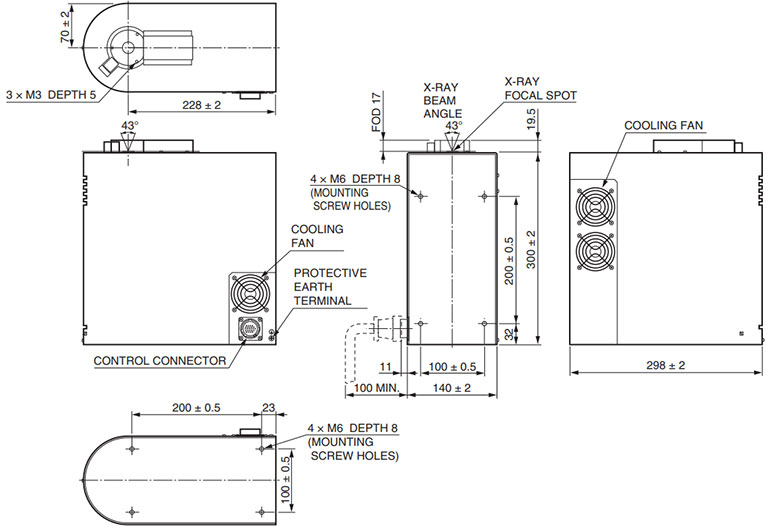

X-RAY TUBE UNIT L8122-01

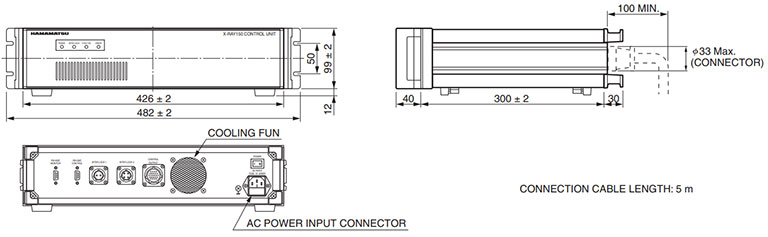

X-RAY CONTROL UNIT C12163


System configuration of L12161-07: X-ray tube unit(L8122-01) + X-ray control unit(C12163) + turbo pump set + accessories
