PSD module

C10443-06

Integrates a 4-segment Si photodiode with low-noise amp in a compact case (Photosensitive area: 10 × 10 mm)



PSD module C10443-06 contains a 4-segment Si photodiode and a low-noise amplifier, and is able to perform accurate distance measurement.


Features
-Photosensitive area: 10 × 10 mm
-Easy handling
-High precision analog voltage output
-Only half size of a business card: 34 (W) × 44 (H) × 40 (D) mm
-Three-types with different active areas available



Detector type 4-segment photodiode
Photosensitive area 10 × 10 mm
Spectral response range 320 to 1100 nm
Peak sensitivity wavelength 960 nm
Photosensitivity (typ.) -72 mV/μm
Supply voltage ±5 to ±12 V
Measurement condition Ta=25 ℃, Vcc=±12 V, unless otherwise noted

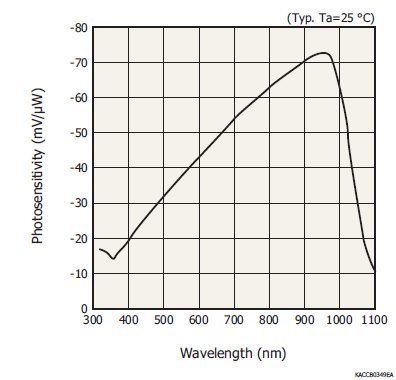

Spectral response

Dimensional outline (unit: mm)
