Achieving more with less.

Technology concept

Hypereon Concept

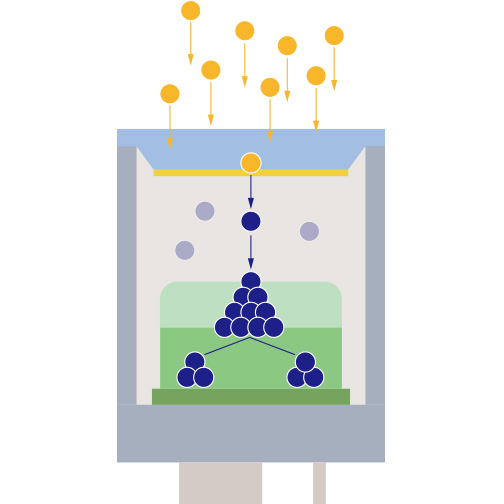

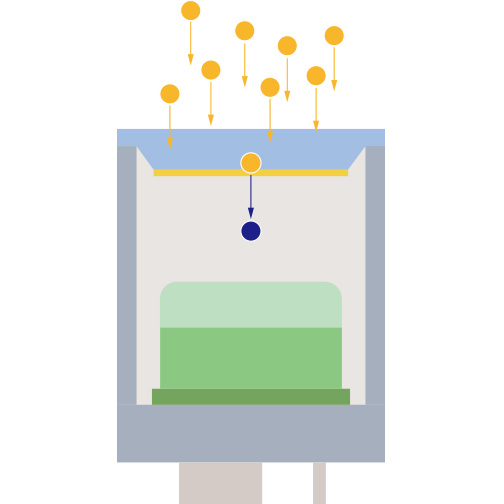

At the heart of Hypereon is a hybrid sensor that combines electron bombardment gain with avalanche photodiode gain. This two-stage amplification forms the basis of its low-light detection capabilities. Making the most of these capabilities requires an integrated approach to optical design, the sensor head, and readout and signal processing.

Designing with Hypereon: An integrated approach

A Hypereon-based measurement system brings together optics, the sensor head, and readout and signal processing. Each plays a distinct role, but measurement performance depends on how they work together. Considering all three in relation to the application’s requirements is fundamental to effective instrument design.

The diagram illustrates a system design concept, not a list of available components or configurations.

Optics

Efficient light collection and coupling

Effective optical design delivers the light of interest to the detector efficiently while minimizing stray light and unwanted background light. To make the most of Hypereon’s low-light detection capabilities, the optical path and detector should be considered together, including how spectrometer optics or fiber coupling match the size and shape of the photosensitive area.

Sensor head

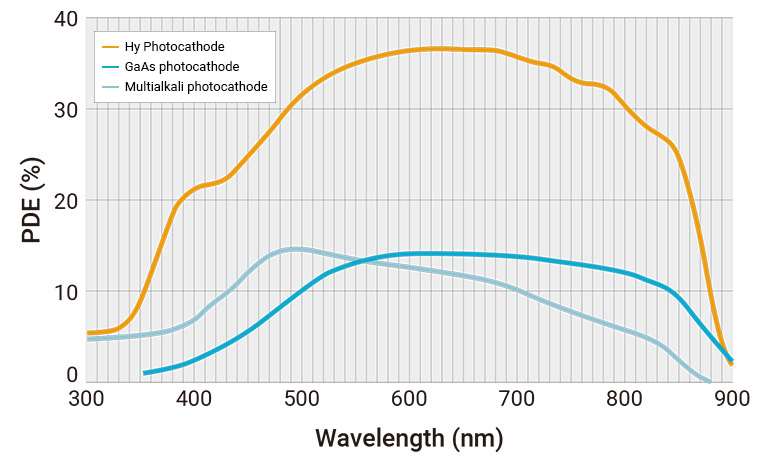

High photon detection efficiency with low gain fluctuation

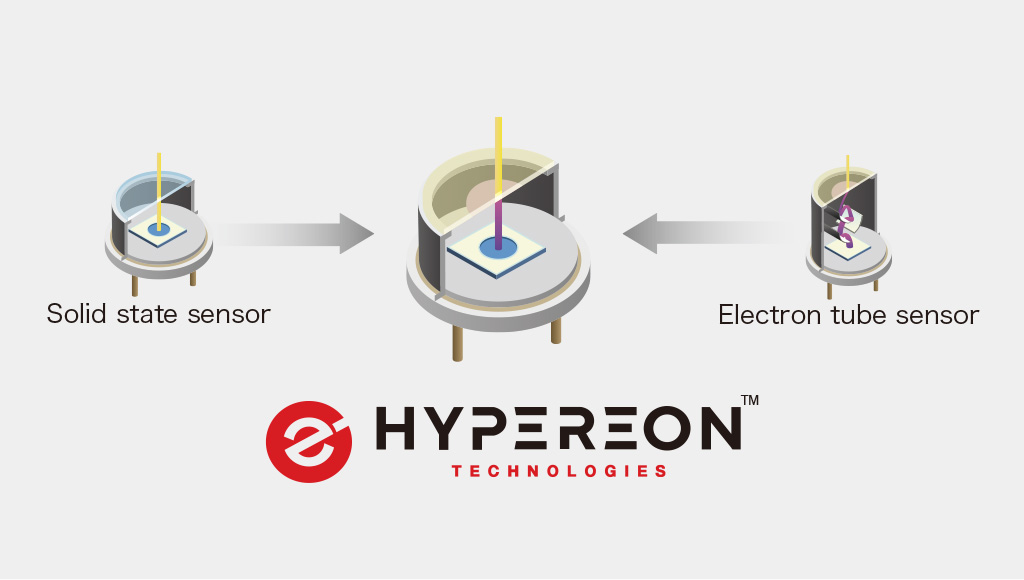

At the core of Hypereon is a hybrid sensor head that combines vacuum and semiconductor technologies to achieve high photon detection efficiency with low gain fluctuation. When enabled, the dedicated power supply's temperature compensation reduces gain variations caused by ambient temperature changes.



As a development concept, the following parameters are designed to be matched to application requirements, depending on development status:

  • Number of channels
  • Bandwidth
  • Photocathode type

Readout & signal processing

Low-noise readout for weak signals

Making the most of Hypereon’s low-light detection capabilities and wide dynamic range requires readout circuitry that preserves small signals without allowing them to be obscured by noise. Dedicated low-noise readout circuitry converts the sensor signal into an analog voltage output. The design of the measurement system, including subsequent A/D conversion and digital signal processing, is also important for realizing these benefits.

Key specifications (tentative)

The following specifications are tentative. The products are under development.

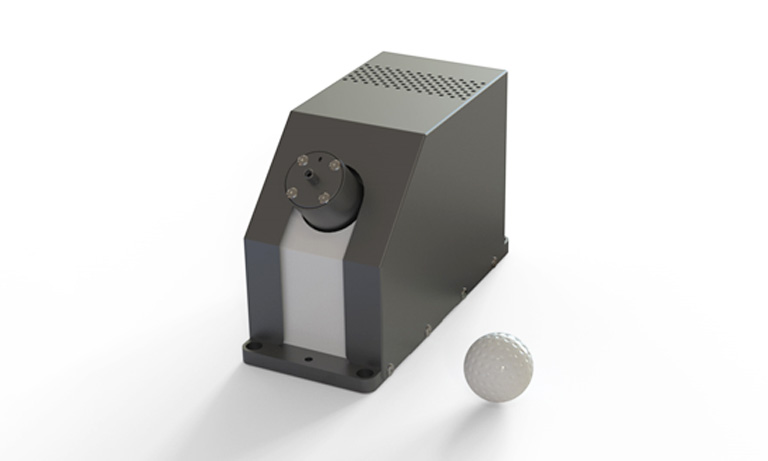

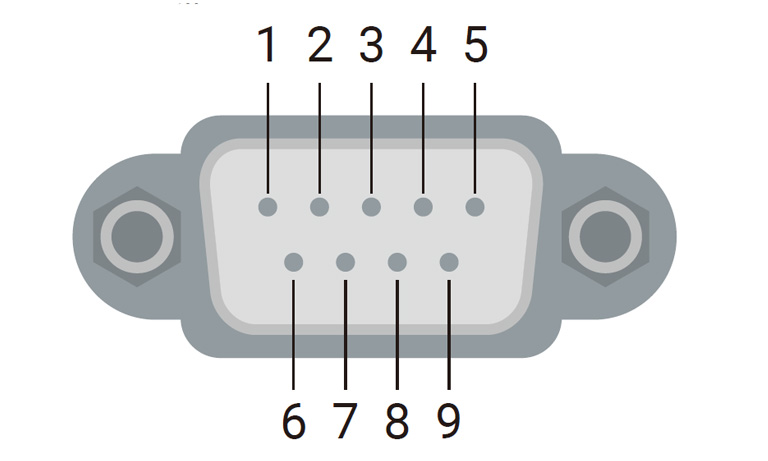

Spectral module with hybrid array sensor

Parameter Value Unit
Number of channels 32 ch
Spectral sensitivity range Min. 419 nm
Max. 851
Cutoff frequency Typ. 1.0 MHz
Pulse output voltage per channel * Max. 4 V
Optical input connector SMA905 (IEC 60874-2) –
Input fiber NA Less than or equal to 0.12 –
Input fiber core diameter ≤1.5 mm

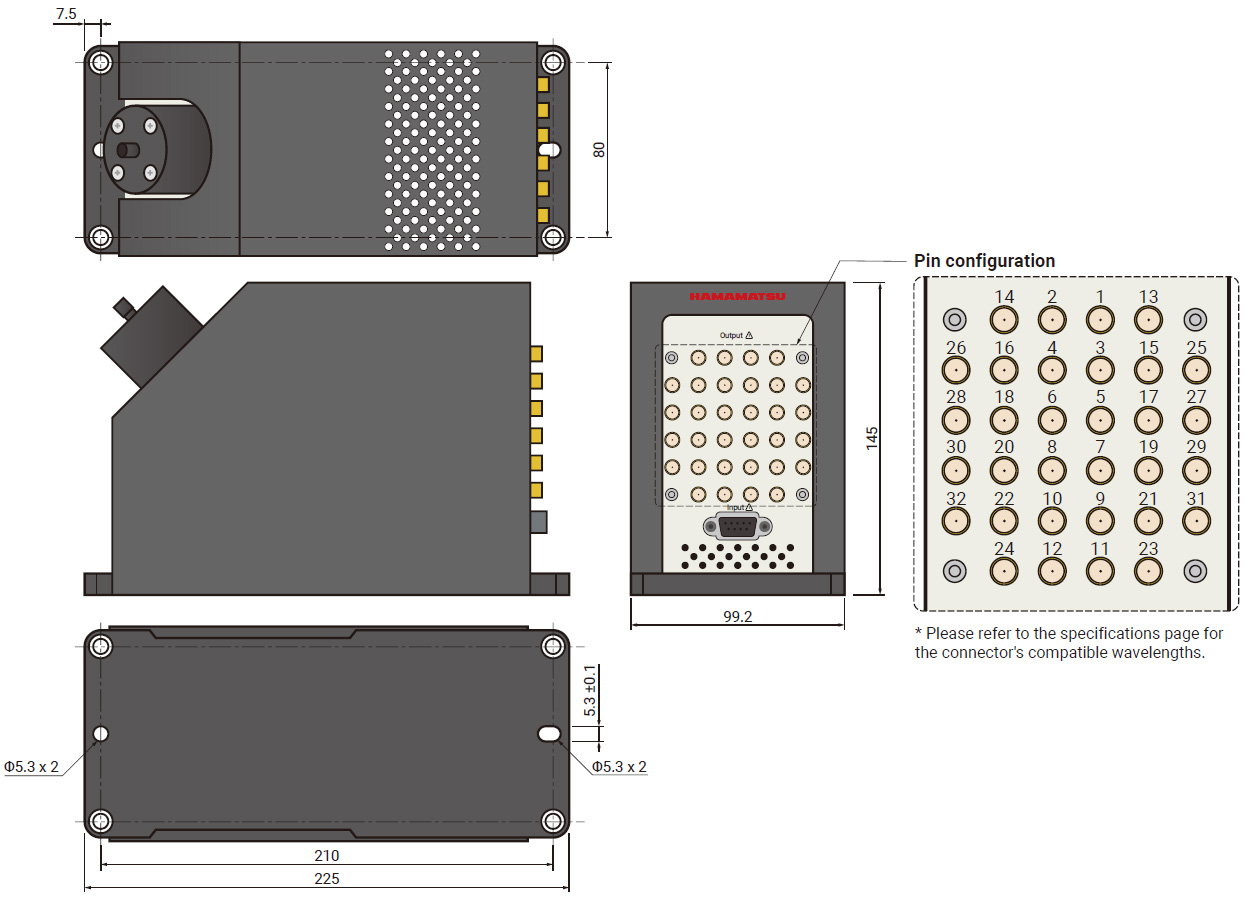

Dimensions(W × D × H) 99.2 x 225 x 145 mm
Weight 3 kg

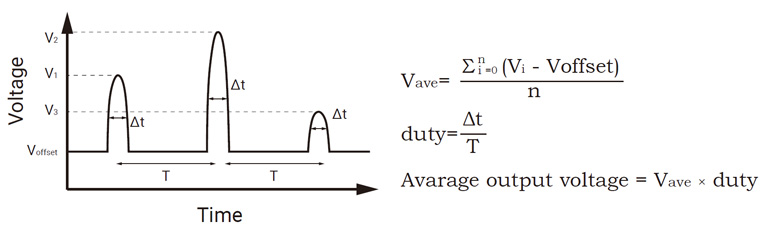

* Maximum pulse output voltage does not indicate the allowable continuous output level. The recommended average output voltage per channel is 0.012 V.

This unit has no optical filter. Please consider any filters before the input if needed.

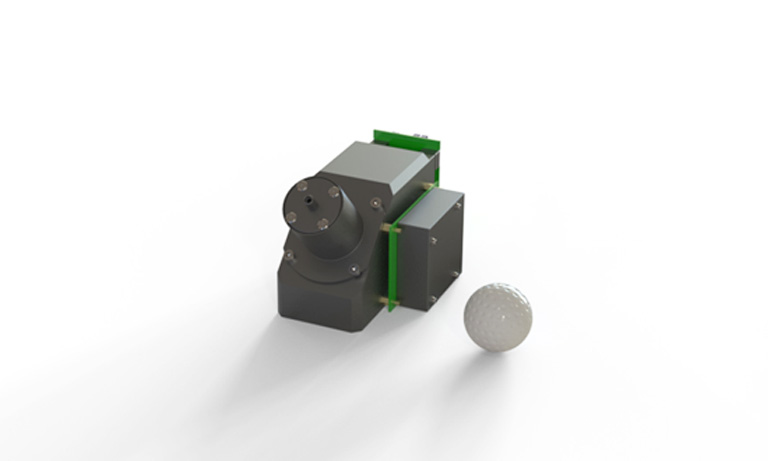

Hybrid sensor assembly (Single-channel type)

Parameter Hy-GaAsP Hy-GaAs Unit
Number of channels 1 –
Effective photocathode size φ3 mm
Spectral response 300 to 740 300 to 900  nm

Developing a next-generation instrument? If you are exploring new detection approaches for your instrument, we welcome the conversation.
