CMOS linear image sensor
The S12706 is a high sensitivity CMOS linear image sensor using a photosensitive area with minute pixels. it has a long photosensitive area (effective photosensitive area length: 28.672 mm) consisting of 4096 pixels, each with a pixel size of 7 x 7 μm.
|Type||High sensitivity type|
|Image size||28.672 x 0.007 mm|
|Number of effective pixels||4096 x 1 pixels|
|Pixel size||7 x 7 μm|

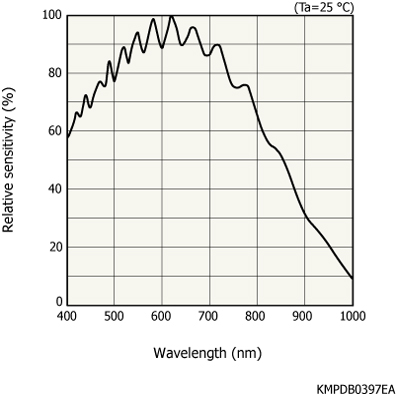

|Spectral response range||400 to 1000 nm|
|Line rate (max.)||2387 lines/s|
|Window material||Broslicate glass|
|Measurement condition||Typ. Ta=25 ℃, Vdd=5 V, V(CLK)=V(ST)=5 V, f(CLK)=10 MHz, unless otherwise noted|
