InGaAs PIN photodiode array
|Number of elements||16|

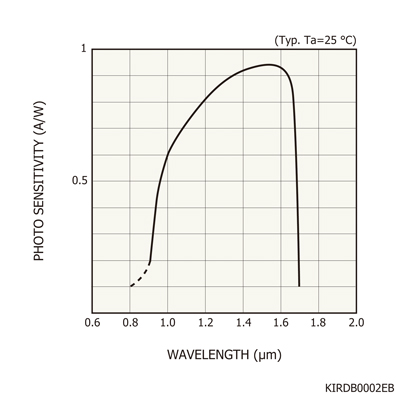

|Spectral response range||0.9 to 1.7 μm|
|Peak sensitivity wavelength (typ.)||1.55 μm|
|Photosensitivity (typ.)||0.95 A/W|
|Dark current (max.)||1 nA|
|Cutoff frequency (typ.)||300 MHz|
|Terminal capacitance (typ.)||10 pF|
|Measurement condition||Typ. Ta=25 ℃, unless otherwise noted|
