Si photodiode array


RGB color sensor integrated in small and thin package

The S10917-35GT is a compact color sensor with a 3-channel photodiode mounted in one package, and sensitive to red (λ=590 to 680 nm), green (λ=470 to 600 nm) and blue (λ=390 to 530 nm) light. An infrared-cut filter is formed on the photosensitive area. This color sensor achieves superior cost performance and is suitable for monitoring brightness of RGB-LED backlight LCD in hand-held devices such as cell phones.

- Infrared-cut filter formed on active area
- Superior cost performance
- Small, thin package: 3.0 × 1.6 × 1.0t mm
- 3-channel (RGB) Si photodiode
- Photosensitive area: 1 × 1 mm/3-segment (RGB)
- RoHS-compatible
- Surface mount type

Product type RGB photodiode
Package material Plastic
Package type COB type
Package size 3.0 × 1.6 × 1.0 mm
Photosensitive area 1 × 1 mm
Spectral response range (Blue) 390 to 530 nm
Spectral response range (Green) 470 to 600 nm
Spectral response range (Red) 590 to 680 nm
Peak sensitivity wavelength (Blue) 460 nm
Peak sensitivity wavelength (Green) 540 nm
Peak sensitivity wavelength (Red) 620 nm
Photosensitivity (Blue) 0.2 A/W
Photosensitivity (Green) 0.23 A/W
Photosensitivity (Red) 0.17 A/W
Dark current (max.) 0.05 nA
Terminal capacitance 12 pF
Rise time 0.1 μs
Operating temperature -25 to +85 deg.C
Storage temperature -40 to +85 deg.C
Measurement condition Typ. Ta=25 deg.C, per element, Photosensitivity: λ=λp, Dark current (all elements): VR=1 V, unless otherwise noted

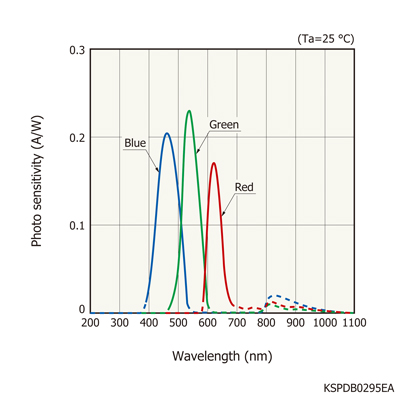

Spectral response
