Si PIN photodiode array
The S9345 is a dual-element Si PIN photodiode employing a newly developed small, thin plastic package. The cubic volume reduced to onefifth that of similar type photodiodes using conventional package. In order to extend the detection area when used as a reflection-mode optical switch, the entire photodiode active area of 1.5 mm wide and 5.6 mm long is asymmetrically segmented into 2 longitudinal sections of 1.5 mm and 4.1 mm.
|Number of elements||2-segment|
|Package category||Surface mount type|

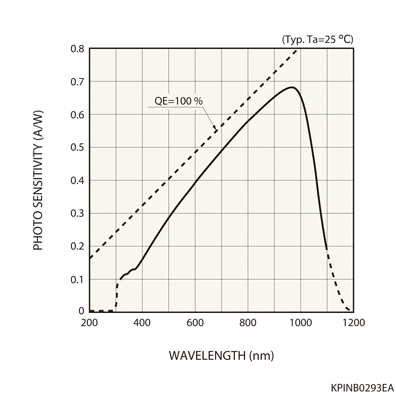

|Spectral response range||320 to 1100 nm|
|Peak sensitivity wavelength (typ.)||960 nm|
|Photosensitivity (typ.)||0.55 A/W|
|Dark current (max.)||5000 pA|
|Cutoff frequency (typ.)||15 MHz|
|Measurement condition||Typ. Ta=25 ℃, per one element (except for photosensitive area), unless otherwise noted,
Photosensitivity: λ=960 nm
