Si PIN photodiode

S15158

Surface mountable 16-element array

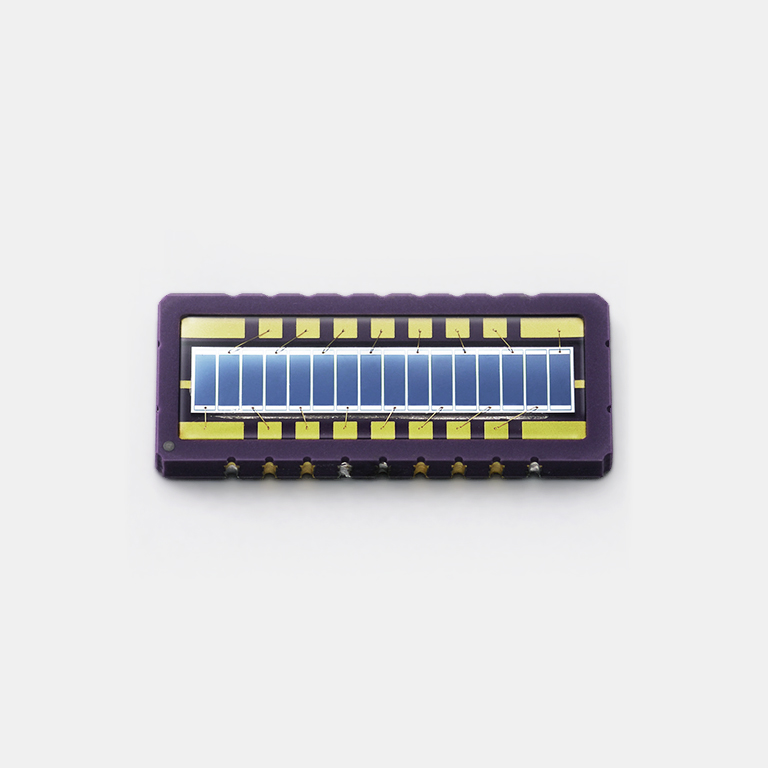

The S15158 is a 16-element Si PIN photodiode array in surface mountable chip carrier package. It can be mounted using solder reflow and used in a wide variety of applications such as spectrophotometers and distance measurement.


Features
-Photosensitive area: 0.7 × 2.0 mm (× 16 elements)
-Surface mountable chip carrier package
-Compatible with lead-free solder reflow
-High sensitivity

Element size (per 1 element) 0.7 × 2.0 mm
Number of elements 16
Package Glass epoxy
Package category Surface mount
Scintillator type None
Cooling Non-cooled
Reverse voltage (max.) 30 V
Spectral response range 380 to 1100 nm
Peak sensitivity wavelength (typ.) 960 nm
Photosensitivity (typ.) 0.63 A/W
Dark current (max.) 10000 pA
Terminal capacitance (typ.) 60 pF
Measurement condition Typ. Ta=25 ℃, unless otherwise noted
per one element, Photosensitivity: λ=λp, Dark current: VR=10 V, all 16 elements, Terminal capacitance: VR=10 V, f=10 kHz, all 16 elements
