Si photodiode array

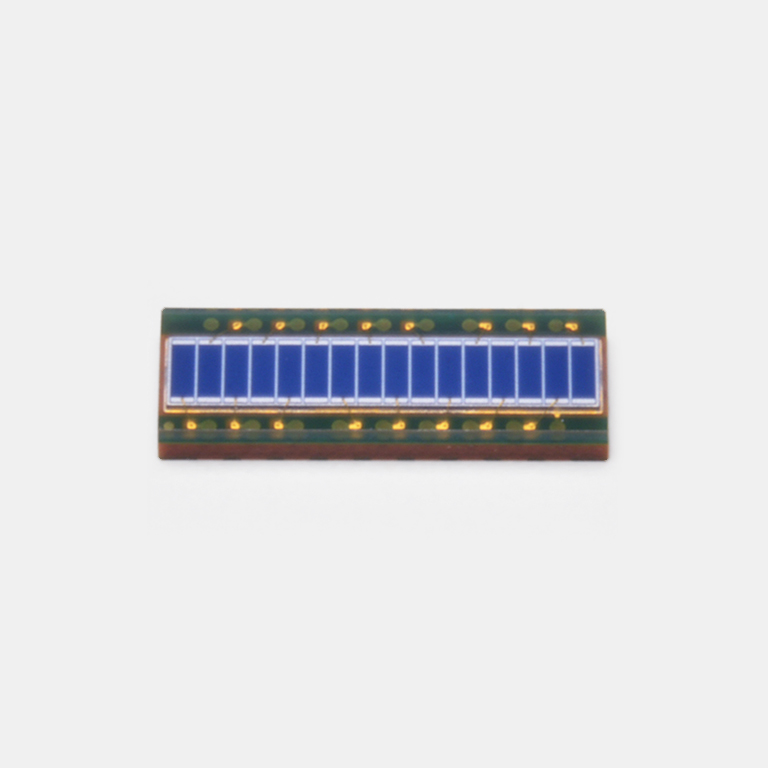

The S8558 is a 16-element Si PIN photodiode array in a ceramic chip carrier package suitable for surface mount using solder reflow techniques. The S8558 can be used in a wide range of applications including spectrophotometer and distance measurement.
|Element size (per 1 element)||0.7 × 2.0 mm|
|Number of elements||16|
|Package category||Surface mount|
|Reverse voltage (max.)||30 V|

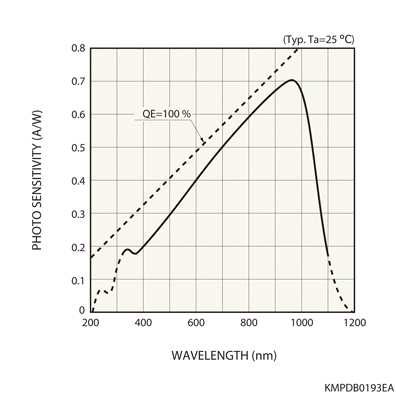

|Spectral response range||320 to 1100 nm|
|Peak sensitivity wavelength (typ.)||960 nm|
|Photosensitivity (typ.)||0.72 A/W|
|Dark current (max.)||1000 pA|
|Terminal capacitance (typ.)||5 pF|
|Measurement condition||Typ. Ta=25 ℃, unless otherwise noted
per one element, Photosensitivity: λ=λp, Dark current: VR=10 V, Terminal capacitance: VR=10 V, f=1 MHz
