Si photodiode

S2592-04

Thermoelectrically cooled photodiode for low-light-level detection in UV to near IR

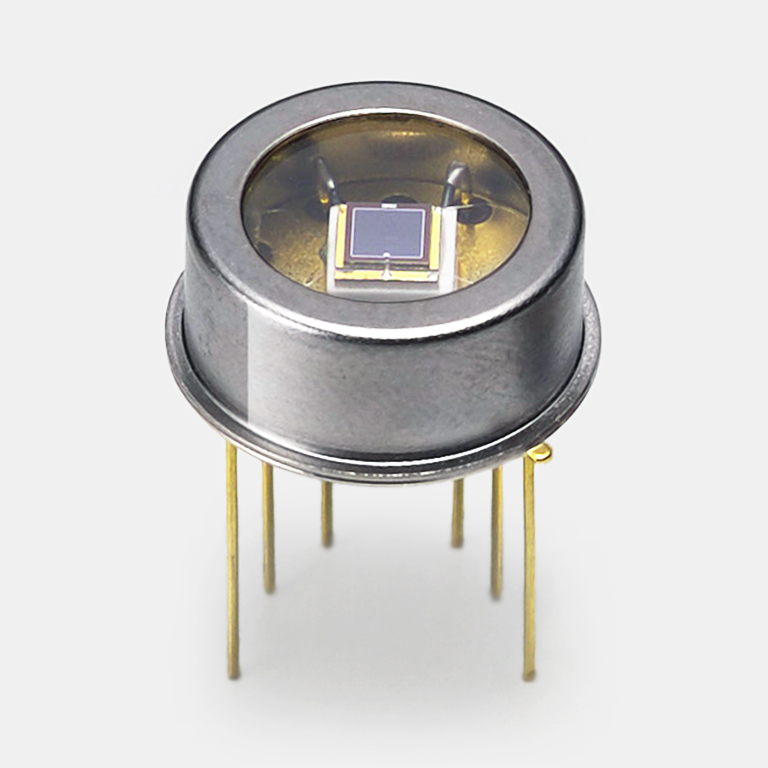

The S2592-04 combines a UV to near infrared Si photodiode with a thermoelectric cooler. A thermistor is also included in the same package to sense the Si photodiode chip temperature. This allows stable operation over long periods of time, making this sensor suitable for low-light-level detection where a high S/N is required. The S2592-04 is hermetically sealed in a TO-8 package.


Features
- High S/N
- High UV sensitivity
- Built-in thermistor allows stable operation

Photosensitive area 5.8 × 5.8 mm
Number of elements 1
Package Metal
Package category TO-8
Cooling TE-cooled
Reverse voltage (max.) 5 V
Spectral response range 190 to 1100 nm
Peak sensitivity wavelength (typ.) 960 nm
Photosensitivity (typ.) 0.5 A/W
Dark current (max.) 200 pA
Rise time (typ.) 1 μs
Terminal capacitance (typ.) 380 pF
Noise equivalent power (typ.) 1.3×10-14 W/Hz1/2
Measurement condition Typ. Ta=25 ℃, Photosensitivity: λ=960 nm, Dark current: VR=10 mV, Terminal capacitance: VR=0 V, Noise equivalent power: VR=0 V, λ=λp, unless otherwise noted

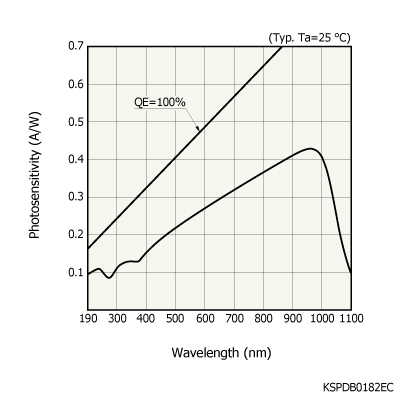

Spectral response

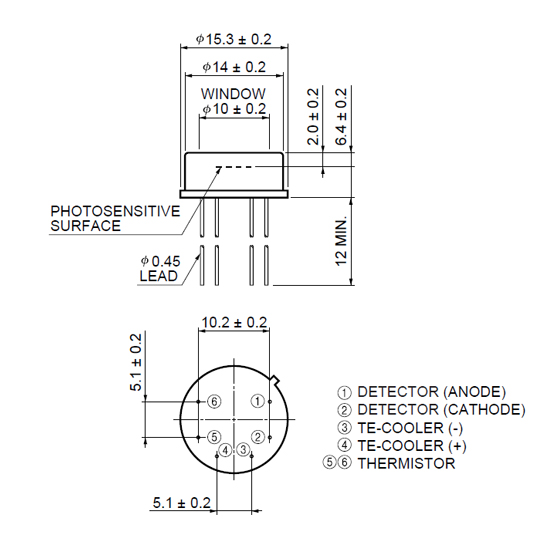

Dimensional outline (unit: mm)
