Si PIN photodiode

S3588-08

Large photosensitive area Si PIN photodiode


Features
-Sensitivity matching with BGO and CsI(TI) scintillators
-Low capacitance
-High-speed response
-High stability
-Good energy resolution

Photosensitive area 30 × 3 mm
Number of elements 1
Package Ceramic
Cooling Non-cooled
Reverse voltage (max.) 100 V
Spectral response range 340 to 1100 nm
Peak sensitivity wavelength (typ.) 960 nm
Photosensitivity (typ.) 0.66 A/W
Dark current (max.) 10000 pA
Cutoff frequency (typ.) 40 MHz
Terminal capacitance (typ.) 40 pF
Noise equivalent power (typ.) 4.7×10-14 W/Hz1/2
Measurement condition Ta=25 ℃, Typ., Photosensitivity: λ=λp, Dark current: VR=70 V, Cutoff frequency: VR=70 V, Terminal capacitance: VR=70 V, f=1 MHz, Noise equivalent power: VR=70 V, unless otherwise noted

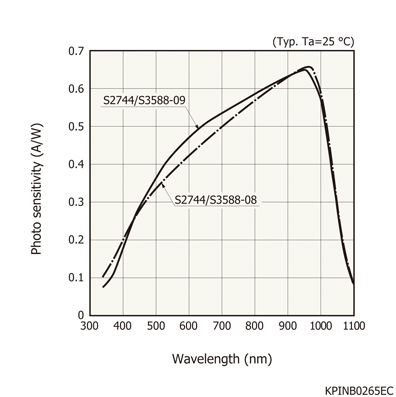

Spectral response

Dimensional outline (unit: mm)
