Si PIN photodiode


SIP plastic package

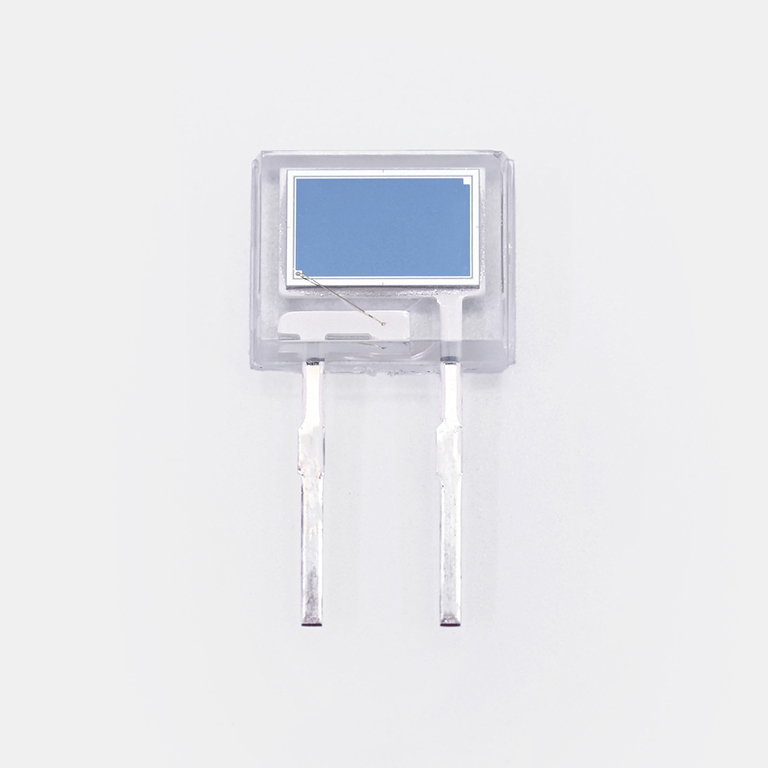

The S8729-04 is a large area Si PIN photodiode molded into a miniature plastic SIP package (75% smaller in cubic volume than conventional types).

-Small plastic package: 4 × 4.8 × 1.8t mm
-2-pin SIP lead type (lead length: 4.9 mm)
-High sensitivity, high speed response
-For infrared (λ=760 to 1100 nm)
-Photosensitive area: 2 × 3.3 mm

Photosensitive area 2 × 3.3 mm
Number of elements 1
Package Plastic
Cooling Non-cooled
Reverse voltage (max.) 20 V
Spectral response range 760 to 1100 nm
Peak sensitivity wavelength (typ.) 960 nm
Photosensitivity (typ.) 0.68 A/W
Dark current (max.) 2000 pA
Cutoff frequency (typ.) 25 MHz
Terminal capacitance (typ.) 16 pF
Noise equivalent power (typ.) 1.2×10-14 W/Hz1/2
Measurement condition Ta=25 ℃, Typ., Photosensitivity: λ=780 nm, Dark current: VR=5 V, Cutoff frequency: VR=5 V, Terminal capacitance: VR=5 V, f=1 MHz, λ=λp, Noise equivalent power: λ=λp, unless otherwise noted

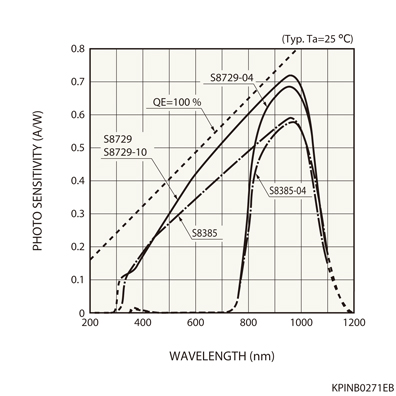

Spectral response

Dimensional outline (unit: mm)
