Si PIN photodiode

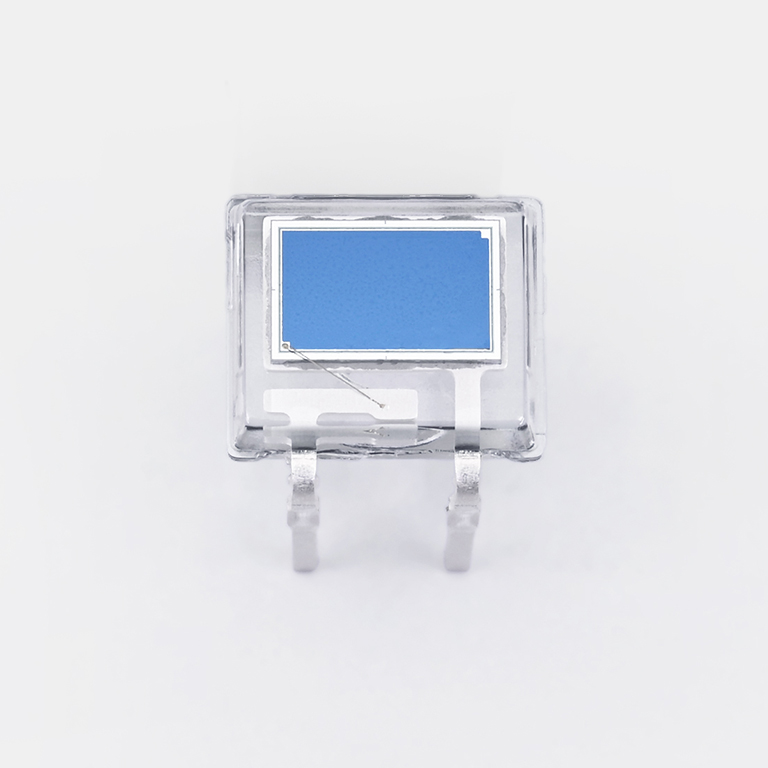

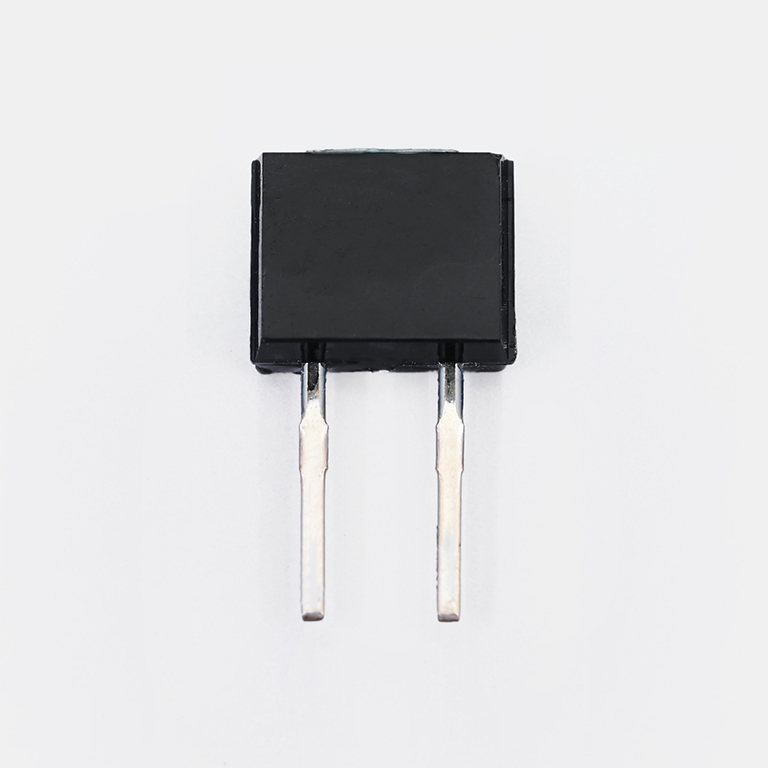

The S8729 is a large area Si PIN photodiode molded into a miniature plastic SIP package (75% smaller in cubic volume than conventional types).
|Photosensitive area||2 × 3.3 mm|
|Number of elements||1|
|Reverse voltage (max.)||20 V|

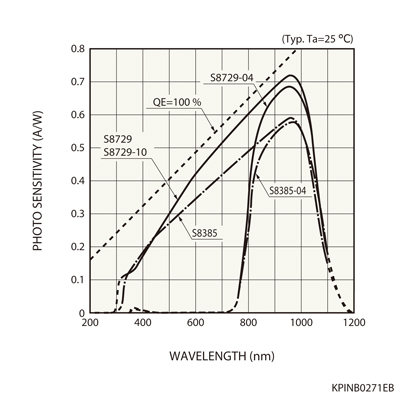

|Spectral response range||320 to 1100 nm|
|Peak sensitivity wavelength (typ.)||960 nm|
|Photosensitivity (typ.)||0.55 A/W|
|Dark current (max.)||2000 pA|
|Cutoff frequency (typ.)||25 MHz|
|Terminal capacitance (typ.)||16 pF|
|Noise equivalent power (typ.)||1.1×10-14 W/Hz1/2|
|Measurement condition||Ta=25 ℃, Typ., Photosensitivity: λ=780 nm, Dark current: VR=5 V, Cutoff frequency: VR=5 V, Terminal capacitance: VR=5 V, f=1 MHz, λ=λp, Noise equivalent power: λ=λp, unless otherwise noted|
