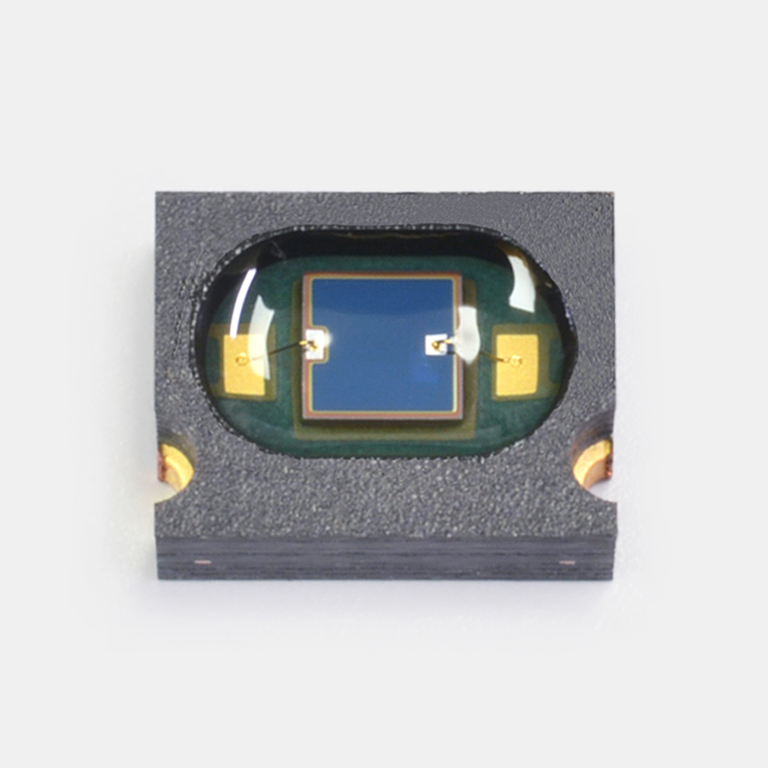

The S9674 is a photodiode that is applicable to lead-free solder reflow and has an extremely wide operating and storage temperature range (-40 to +125 °C). The small and thin leadless package allows reducing the mount area on a printed circuit board.
|Photosensitive area||2 × 2 mm|
|Number of elements||1|
|Package category||Surface mount type|
|Reverse voltage (max.)||10 V|
|Spectral response range||320 to 1100 nm|
|Peak sensitivity wavelength (typ.)||960 nm|
|Photosensitivity (typ.)||0.7 A/W|
|Dark current (max.)||1000 pA|
|Rise time (typ.)||2 μs|
|Terminal capacitance (typ.)||500 pF|
|Measurement condition||Ta=25 ℃, Typ., Photosensitivity: λ=λp, Dark current: VR==5 V, Terminal capacitance: VR=0 V, f=1 MHz, unless otherwise noted|
