D-type socket assembly

E12788

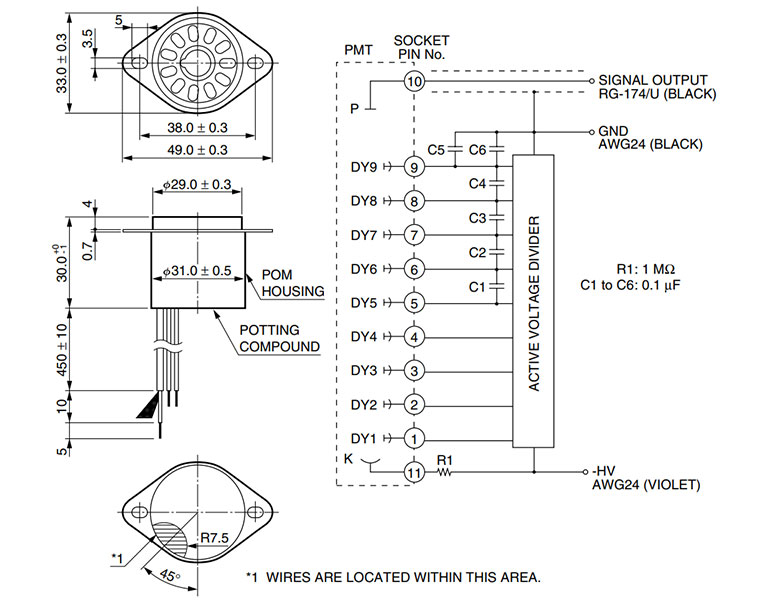

D-type socket assembly designed for 28mm diameter side-on PMTs. It uses transistor circuit for the voltage circuit, making it ideal for use in high output applications.

Specifications

Applicable PMT 28 mm Side-on type
Supply Voltage Polarity -
[Max. Rating] Insulation Voltage (Case-Pins) 1500 V
[Max. Rating] Voltage Divider Current 0.13 mA
Leakage Current in Signal Max. 1.0 x 10-10 A
Max. Linear Output in DC Mode 100 μA
Signal Output DC / Pulse
