HV power supply module

C10940-03

The C10940 series is an on-board type high voltage power supply module, especially designed for photomultiplier tubes.

Features

  • Compact(15 mm×15 mm×18 mm) and light weight
  • High reliability
  • High conversion efficiency

Specifications

Type Compact type
Input Voltage 5 V
Input Current (with no load) Typ. 60 mA
Input Current (with full load) Typ. 230 mA
Max. Output Voltage -1200 V
Max. Output Current 0.6 mA
Specification Guaranteed Output Voltage Range -200 V to -1200 V
Line Regulation +/-0.02 % (against +/-0.5 V input change)
Load Regulation +/-0.01 %
Ripple/Noise 50 mV
Temperature Coefficient +/-0.01 %/℃
Operating Ambient Temperature 0 ℃ to +50 ℃
Operating Ambient Humidity Below 80 %RH
Storage Temperature -20 ℃ to +60 ℃
Storage Humidity Below 80 %RH
Dimensions (W x H x D) 15 mm x 15 mm x 18 mm
Weight 7.7 g

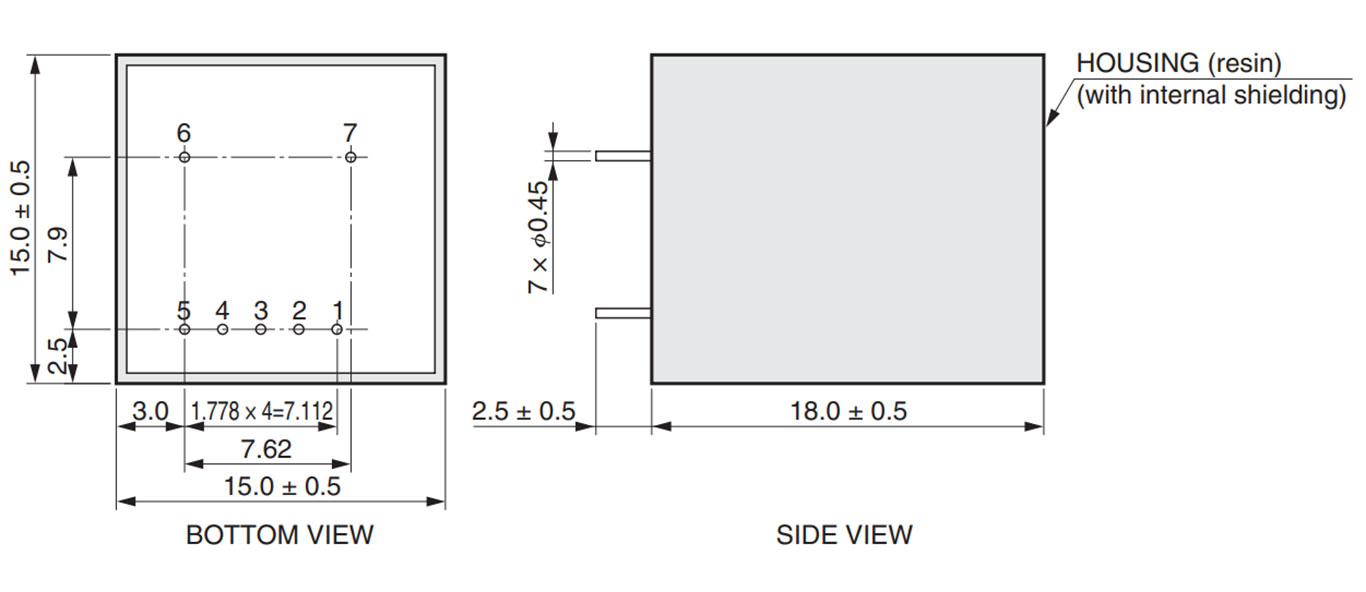

Dimensional outline (Unit: mm)

* This product is internally electromagnetic seeded, but if you wish to provide external shielding, the A12912 shield housing is available separately.
