HV power supply module
|Input Voltage||+11 to +16 V|
|Input Current (with no load) Typ.||35 mA|
|Input Current (with full load) Typ.||125 mA|
|Max. Output Voltage||1250 V|
|Max. Output Current||0.6 mA|
|Specification Guaranteed Output Voltage Range||+200 to +1250 V|
|Line Regulation||±0.01 (against +11V to +16V input change) %|
|Load Regulation||±0.01 %|
|Temperature Coefficient||±0.01 %/℃|
|Operating Ambient Temperature||-10 to +60 ℃|
|Operating Ambient Humidity||Below 80 %|
|Storage Temperature||-20 to +70 ℃|
|Storage Humidity||Below 80 %|

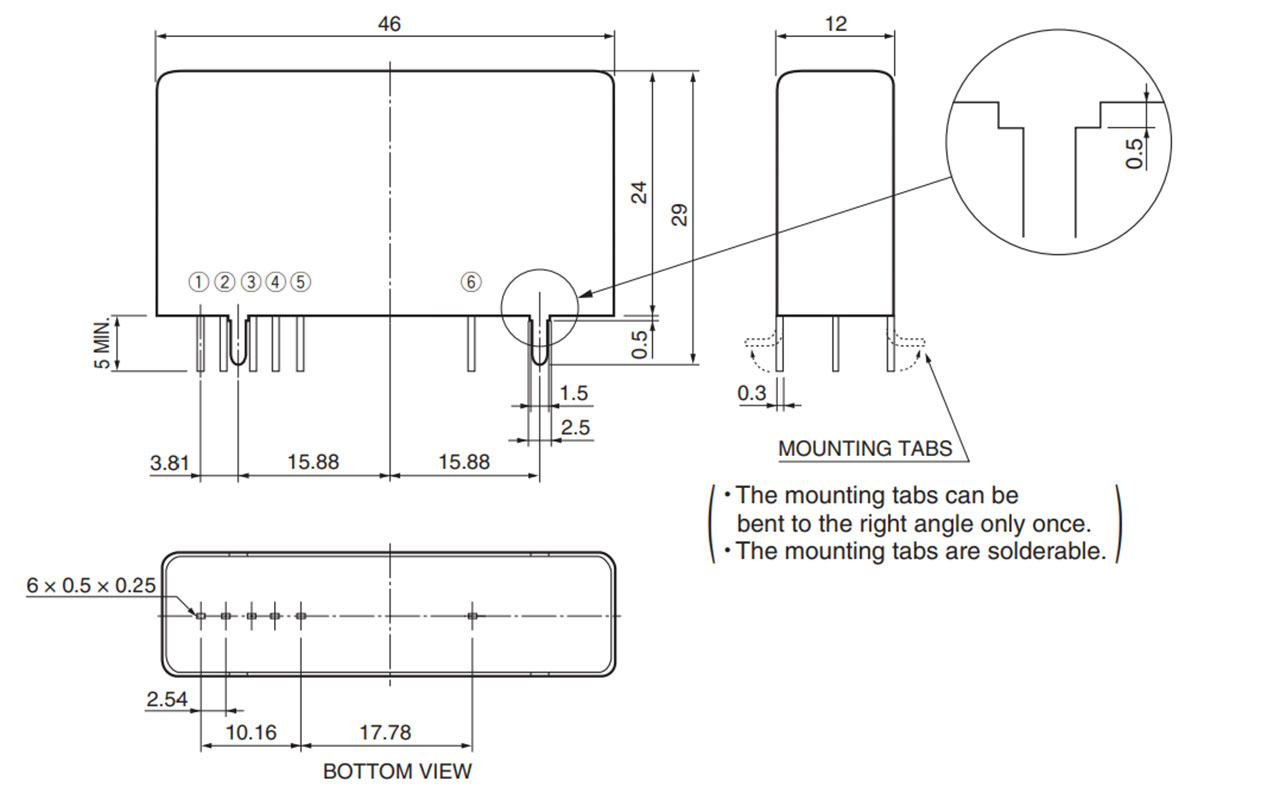

|Dimensions (W x H x D)||46 x 24 x 12 mm|
