Cooler for photomultiplier tube

C10373

Water-cooled thermoelectric coolers designed to reduce thermal electrons emitted from the photocathode of photomultiplier tubes (PMTs) in order to improve signal-to-noise ratio (S/N ratio). The C10373 series is for MCP-PMTs.

Type For MCP-PMT
Cooling Method Thermoelectric cooling using Peltier Elements
Heat Exchange Method Water
Cooling Temperature Approx. -30 ℃ (with cooling water at +20 ℃)
Time to Stable Cooling Temperature Approx. 120 min.
Optical Window Material Evacuated double-pane synthetic silica window with heater (185 nm to 2200 nm)
Applicable PMT (Sold Separately) MCP-PMT (R3809U Series, R5916U Series)
Applicable PMT Holder (Sold Separately) E3059-500 (R3809U Series), E3059-501 (R5916U Series)
Operating Ambient Temperature +5 ℃ to +40 ℃
Operating Ambient Humidity Below 75 %
Storage Temperature -15 ℃ to +50 ℃
Storage Humidity Below 80 %
Cooler Weight Approx. 5.5 kg

Dimensional outline (Unit: mm)

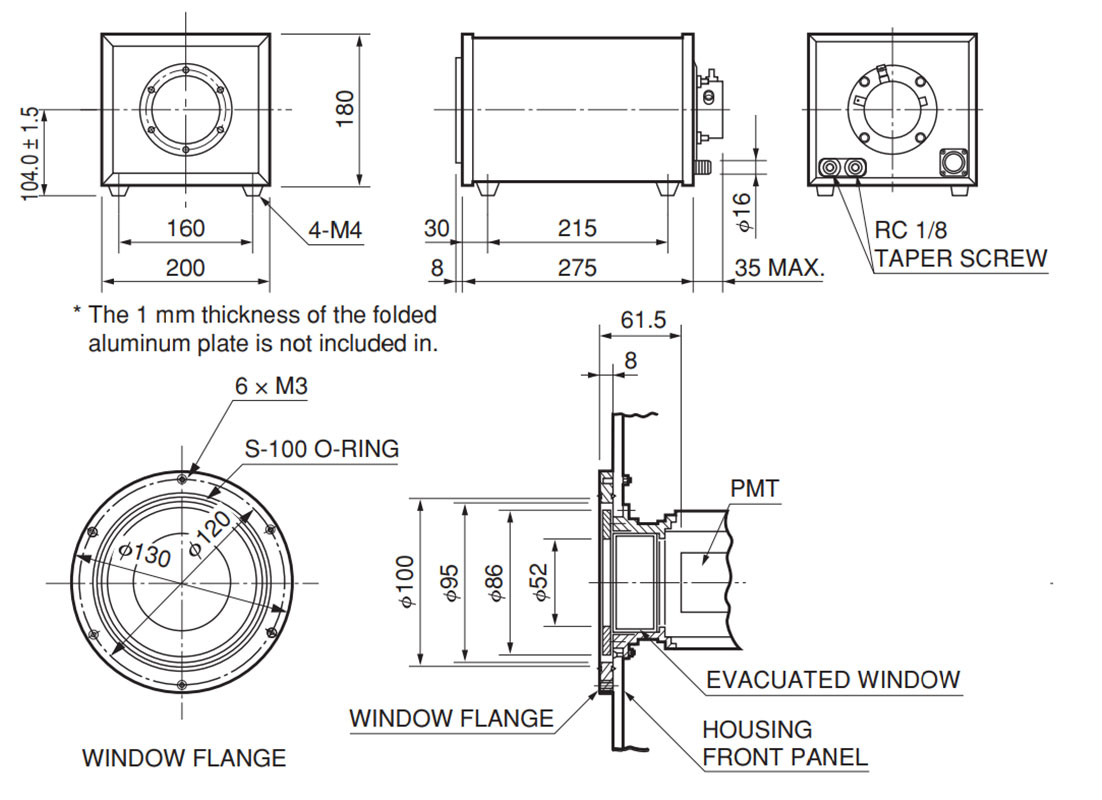

HOUSING

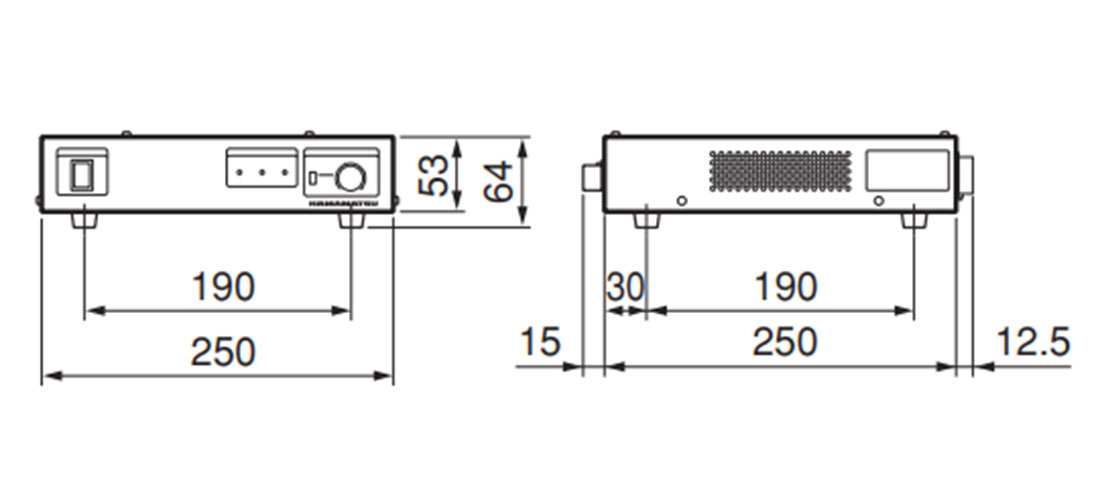

POWER SUPPLY
