Related products | Hybrid photo detectors (HPDs)

Amplifiers

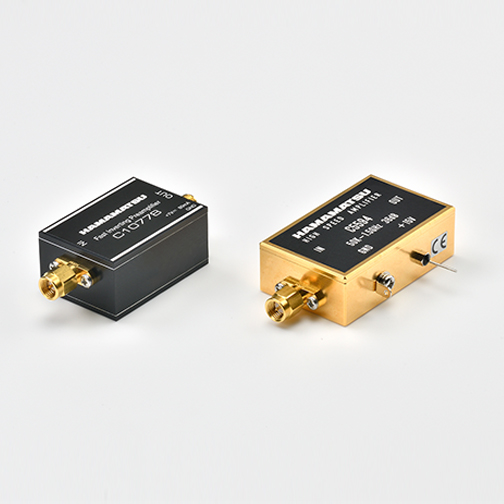

Left:C10778、Right:C5594-12

 Parameter C10778 C5594-12 Unit
Polarity Inverting Non-inverting
Frequency 350 kHz to 1.5 GHz*1 50 kHz to 1.5 GHz*2
Gain Min. 34*3 34*4 dB
Typ. 37*3 36*4 dB
Input / Output impedance 50 50 Ω
Supply voltage +7 to +12 +12 to +16 V dc

*1 The upper and lower cutoff frequencies are defined as the points 3 dB below the average gainover the frequency range 350 kHz to 1.5 GHz.
*2 The upper and lower cutoff frequencies are defined as the points 3 dB below the gain at 0.1 GHz.
*3 Frequency range of 350 kHz to 1.5 GHz
*4 Frequency = 0.1 GHz

High voltage power supplies

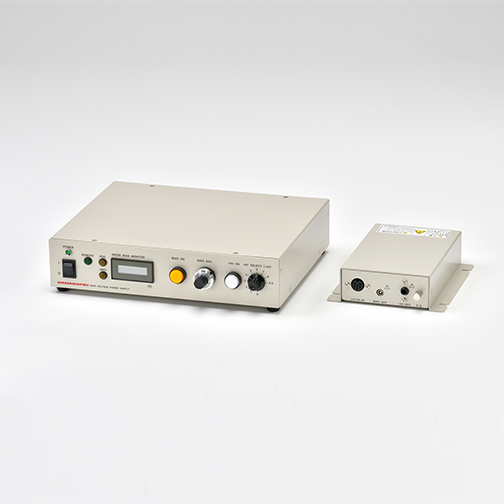

Left:C12929、Right:C13265

 Parameter C10778 C5594-12 Unit
Intput voltage 100 V AC to 240 V AC ±15 V dc
Output Bias voltage range 0 to ±500 0 to ±500 V
Maximum output curent 500 μA
H.V. voltage range 0 to -8.5 kV
Maximum output curent 16 2 μA



Contact us for more information.
