Photomultiplier tube module

H11706-40

The H11706-40 is an optical sensor module containing a metal package photomultiplier tube, a high-voltage power supply circuit, and a gate circuit. The gate circuit electrically protects the photomultiplier tube from excessive light such as excitation light that illuminates samples. The H11706-40 has GaAsP photocathodes with high sensitivity in the visible region. The H11706-40 also includes “P type” with high gain and low dark count specifically selected for photon counting applications.

Photocathode Area Shape Round
Photocathode Area Size Dia.5 mm
Wavelength (Short) 300 nm
Wavelength (Long) 720 nm
Wavelength (Peak) 580 nm
Dimension (W x H x D) 22.0 x 50.0 x 68.0 mm
Input Voltage +14.5 to +15.5 V
Max. Input Voltage 16 V
Max. Input Current 10 mA
Max. Output Signal Current 2 μA
Max. Control Voltage 0.9 V
Recommended Control Voltage Adjustment Range +0.5 to +0.8 V
[Cathode] Radiant Sensitivity Typ. 176 (at 550 nm) mA/W
[Anode] Radiant Sensitivity Typ. 8.8 x 104 (at 550 nm) A/W
[Anode] Dark Current (after 30min.) Typ. 5 nA
[Time Response] Rise Time Typ. 0.57 ns
Ripple Noise (peak to peak) Max. 0.8 mV
Settling Time Max. 0.2 s
Operating Ambient Temperature +5 to +35 ℃
Storage Temperature -20 to +50 ℃
Weight 135 g

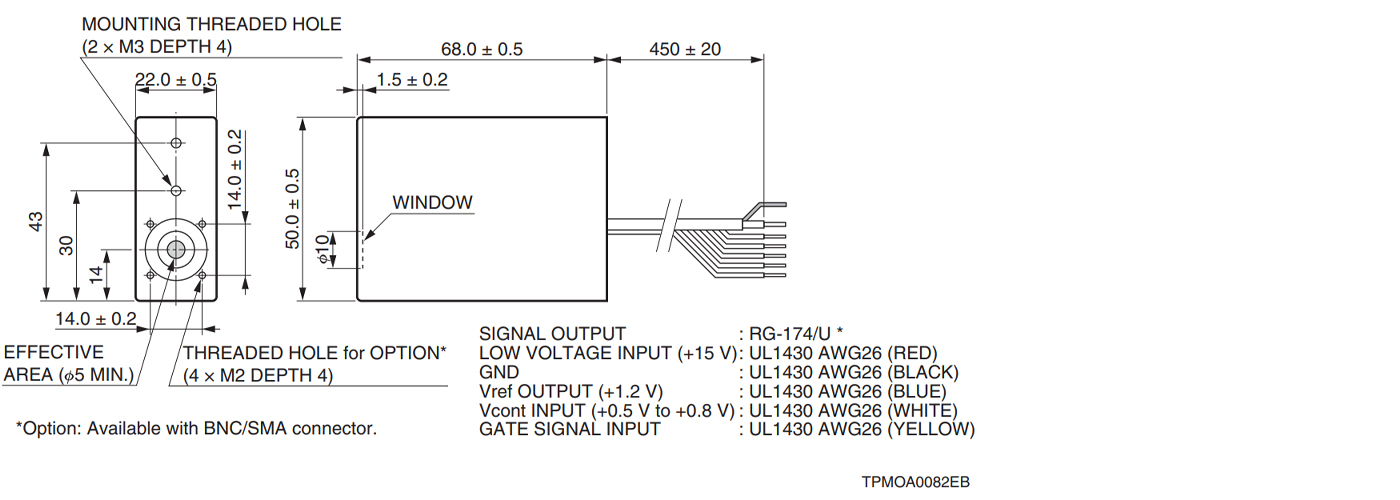

Dimensional outline (Unit: mm)
