Photomultiplier tube module


The H15620 series is NIR-PMT module using a compact NIR-PMT(near infrared photomultiplier tube) developed by our advanced photocathode technology.

Photocathode Area Shape Round
Photocathode Area Size Φ1.6 mm
Wavelength (Short) 950 nm
Wavelength (Long) 1400 nm
Wavelength (Peak) 1300 nm
Dimension (W x H x D) 80 mm x 60 mm x 126 mm
Input Voltage +4.5 to +5.5 V
Max. Input Voltage +5.5 V
Max. Input Current +100 mA
Max. Output Signal Current 1 µA
Max. Control Voltage +0.9 V
Recommended Control Voltage Adjustment Range +0.5 to +0.8 V
[Cathode] Radiant Sensitivity Typ. 21 mA/W
[Anode] Radiant Sensitivity Typ. 2.1 x 104 A/W
[Anode] Dark Current Typ. 13 nA (PMT temperature -30 ℃)
[Anode] Dark Current Max. 130 nA (PMT temperature -30 ℃)
[Time Response] Rise Time Typ. 0.9 ns
Ripple Noise (peak to peak) Max. 0.6 mV
Settling Time Max. 0.2 s
Operating Ambient Temperature +5 to +35 ℃
Storage Temperature -20 to +50 ℃
Weight 720 g

Cooling specifications

Parameter H15620 series Unit
Cooling method Thermoelectric cooling -
Max. cooling temperature (ΔT) 65
Time to reach Max. cooling temperature Approx. 20 min

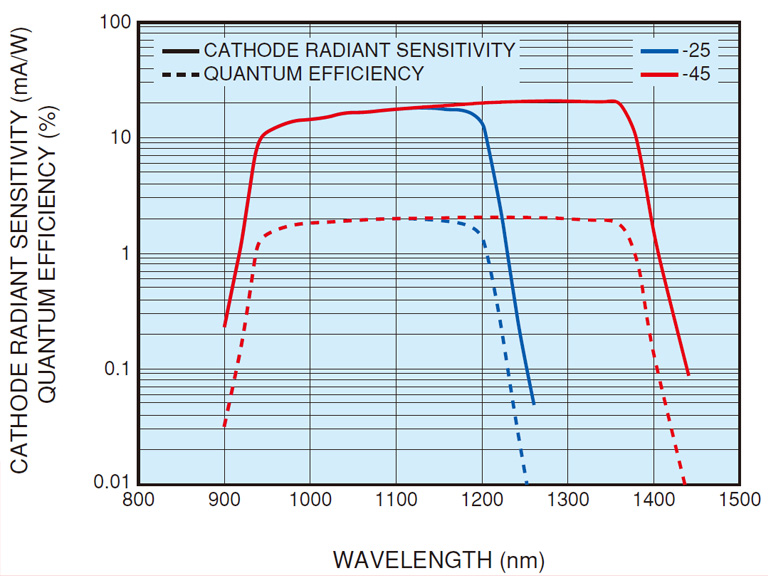

Spectral response (Typ.)

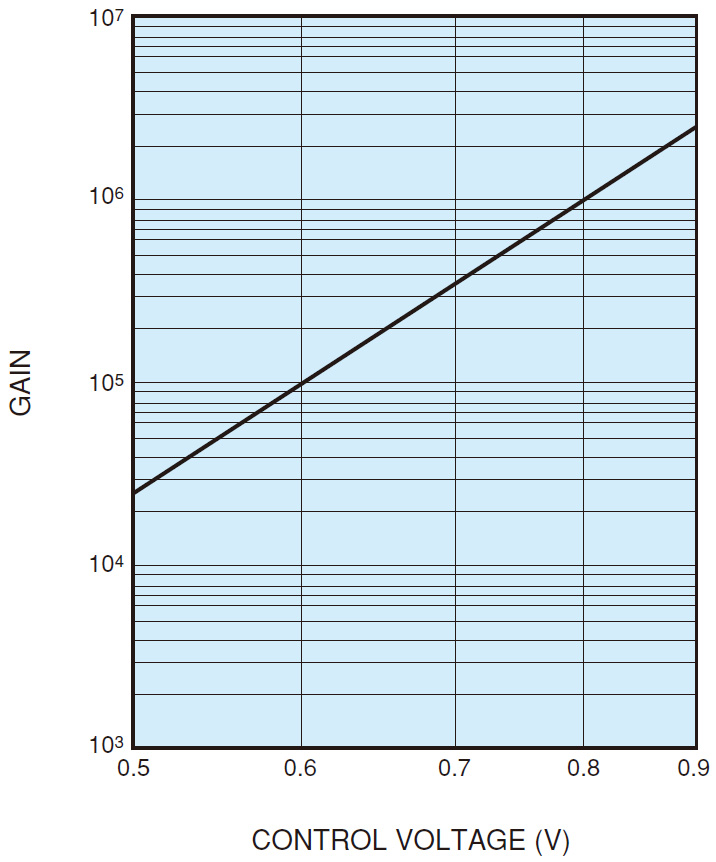

Gain (Typ.)

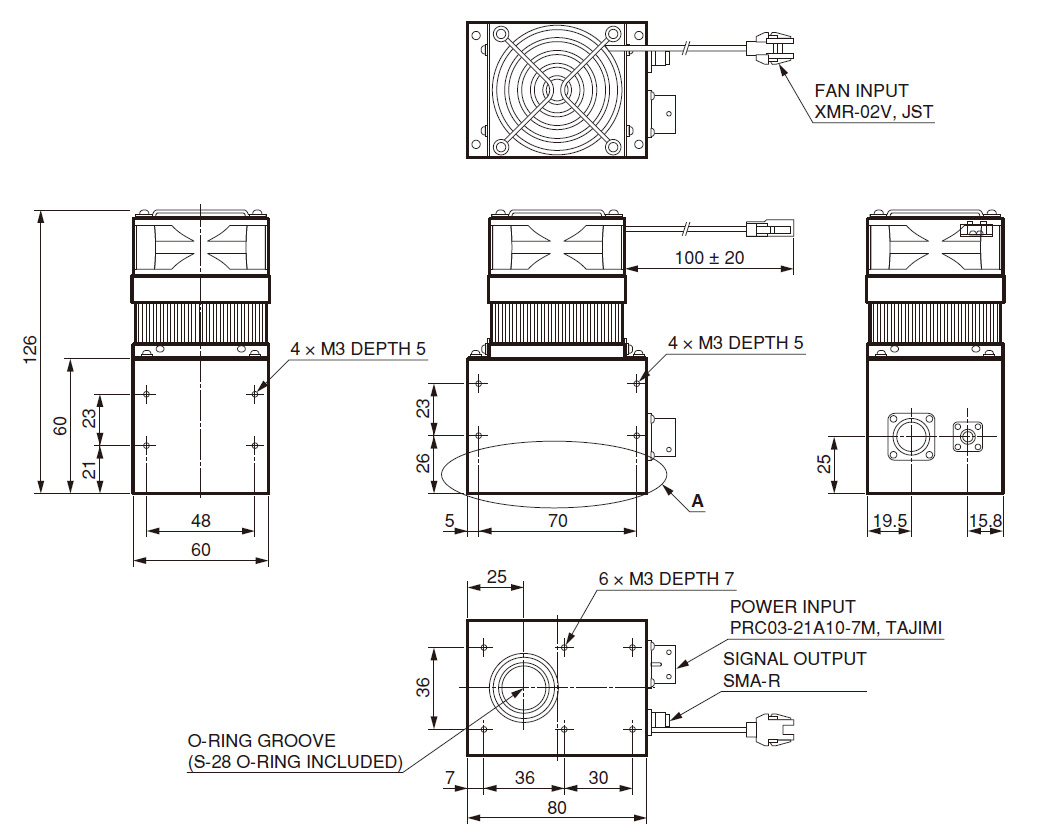

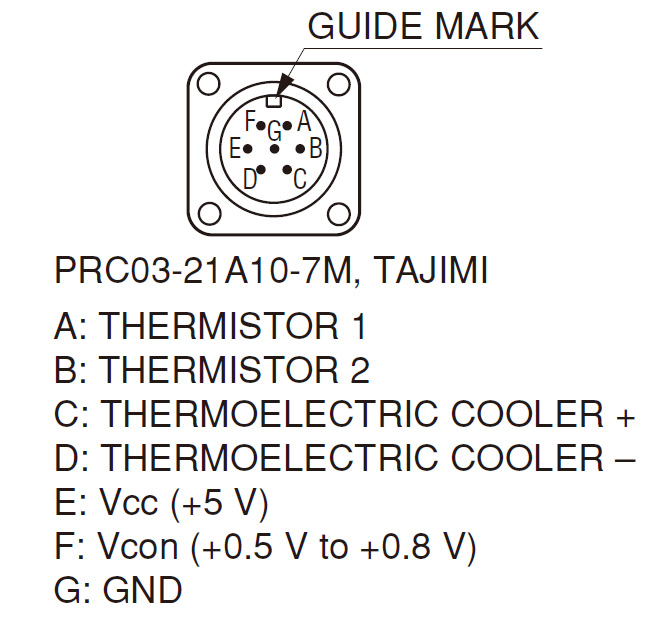

Dimensional outline (Unit: mm)

A cross section

Related products

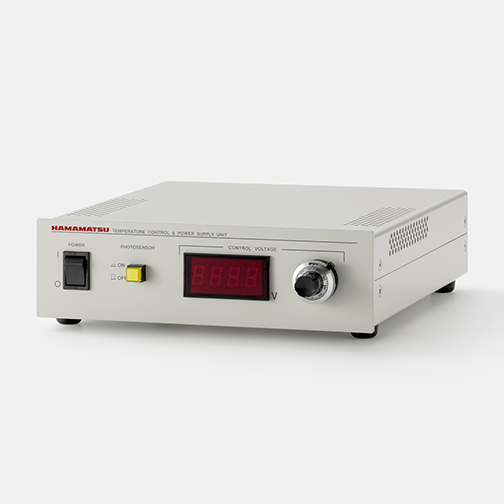

Controller C16137 series

The C16137 series is a bench-top power supply unit with a temperature control function. Just connecting to an AC source of 100 V to 240 V generates the output voltages for the thermoelectric cooler and the fan, which are needed for the H15620 series operation. The photomultiplier tube temperature can be maintained to -30 °C by monitoring the thermistor and regulating the output current for the thermoelectric cooler. Control voltage can be varied by a dial on the front panel.

Type No. guide


Number in □ indicates power cable specifications

2: For Japan / For North America 3: For EU 4: For China 5: For UK 6: For Australia



Parameter C16137 series Unit
Setting cooling temperature (preset at factory) -30
Output voltage for main circuit +4.5 to +5.5 V
Max. output current for main circuit 100 mA
Max. output voltage for thermoelectric cooler 10.6 V
Max. output current for thermoelectric cooler 5 A
Output voltage for fan +11.4 to +12.6 V
Control voltage (variable voltage range) 0 to +0.9 V
AC input voltage 100 to 240 V
Input power frequency 50/60 Hz
Power consumption 140 V·A
Operating Ambient Temperature +5 to +35
Storage Temperature -20 to +50
Usage environment In door use, up to 2000 m altitude -
Weight 1870 g

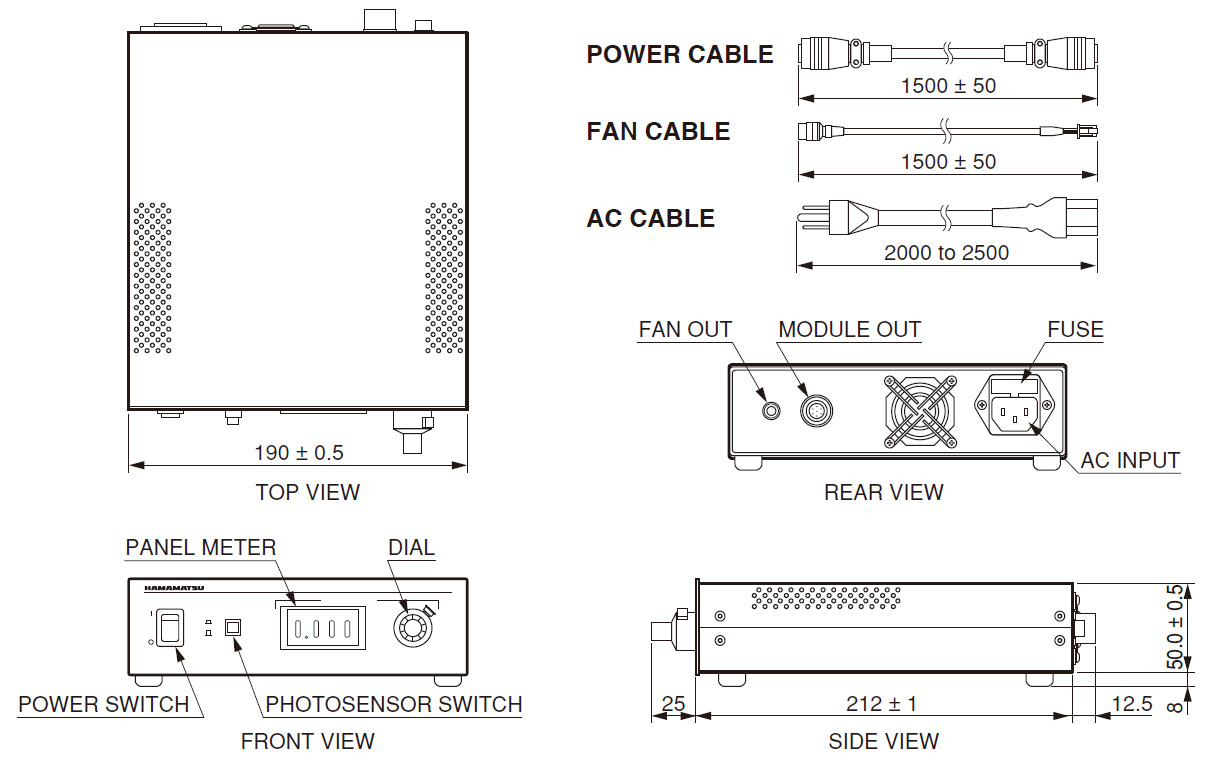

Dimensional outline (Unit: mm)
