Photomultiplier tube unit
H10330C-45
H10330C series is an NIR-PMT unit using a compact NIR-PMT (near infrared photomultiplier tube) developed by our advanced photocathode technology. The NIR-PMT is contained in a thermally insulated sealed-off housing evacuated to a high vacuum. The internal thermoelectriccooler eliminates the need for liquid nitrogen and cooling water. The light input window of these modules use a condenser lens to provide a virtually larger photosensitive area allowing easy optical coupling. Adapters for connection to an optical fiber and monochromator are also available as options.
C10330C series have three types of lineups. (H10330C-45: 950 nm to 1400 nm, H10330C-25: 950 nm to 1200 nm, H10330C-75: 950 nm to 1700 nm)
Features
- High sensitivity (Applicable to photon counting)
- Fast time response: Rise time: 0.9 ns, T.T.S.: 400 ps
- Simple operation by air cooled TE cooler: no liquid nitrogen, no cooling water is necessary
- Operable in 20 min after switched ON
- Large detection area: Dia.18 mm for collimated light
Applications
- Photoluminescence measurement
- Singlet oxygen measurement
- LIDAR
- Raman spectroscopy measurement
- Cathodoluminescence measurement
- Fluorescence, fluorescence life time measurement
- Optical communication device evaluation
Characteristics

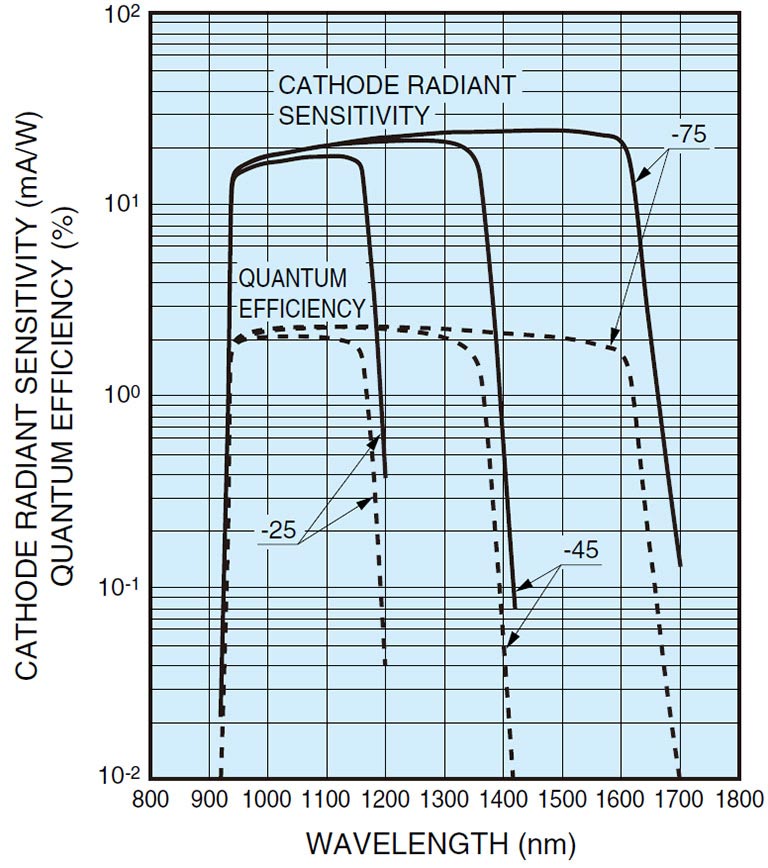

Spectral response
Timing properties

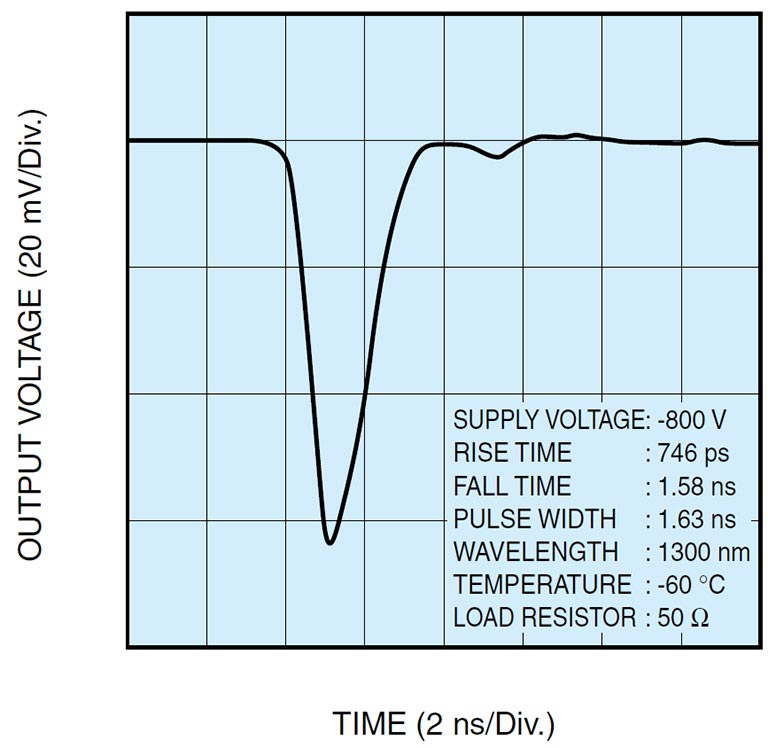

Waveform

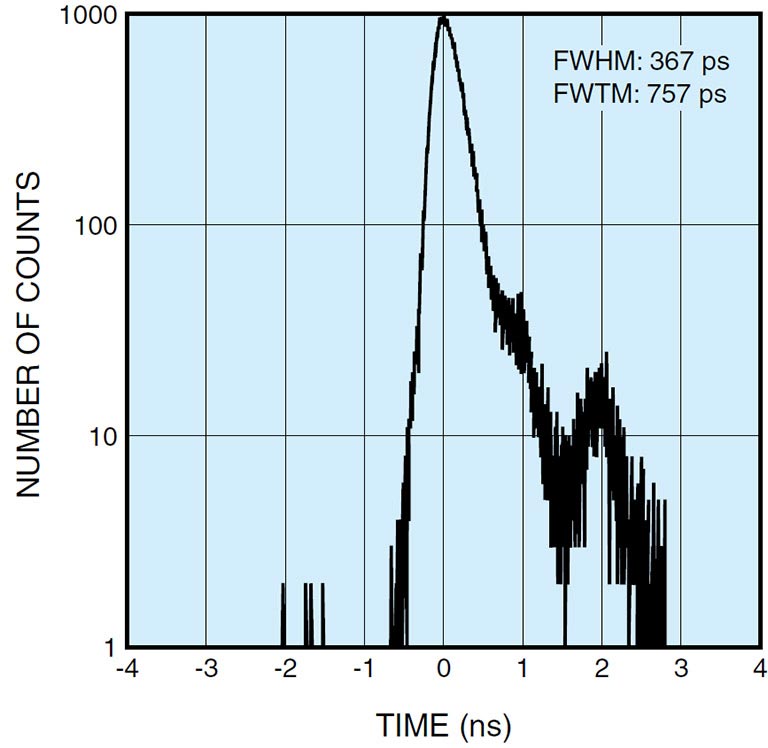

Transit time spread (T.T.S.)
Specifications
General
| Parameter | Description / Value | Unit |
|---|---|---|
| Spectral response | 950 to 1400 | nm |
| Photocathode material | InP/InGaAsP | - |
| Detection area for collimated light | Dia.18 | mm |
| Effective area of PMT | Dia.1.6 | mm |
| PMT operating temperature | -60 | ℃ |
| PMT operating guaranteed voltage | -500 to -900 | V |
| Operating ambient temperature | +5 to +40 | ℃ |
| Operating ambient humidity *1 | Less than 80 | % |
| Storage temperature | -20 to +50 | ℃ |
| Storage humidity | Less than 80 | % |
*1: No condensation
Maximum rating
| Parameter | Value | Unit |
|---|---|---|
| PMT supply voltage | -900 | V |
| Average PMT anode current | 1 | µA |
Characteristics (at -800 V, -60 °C)
| Parameter | Min. | Typ. | Max. | Unit | |
|---|---|---|---|---|---|
| Cathode sensitivity *2 | Quantum efficiency | 1 | 2 | - | % |
| Radiant | - | 21 | - | mA/W | |
| Anode sensitivity *2 | Radiant | - | 2.1×104 | - | A/W |
| Gain | 5×105 | 1×106 | - | - | |
| Anode dark current *2 *3 | - | 4 | 10 | nA | |
| Anode dark count *3 | - | 2.5×104 | - | s-1 | |
| Time response | Anode pulse rise time | - | 0.9 | - | ns |
| Anode pulse fall time | - | 1.7 | - | ns | |
| Transit time spread | - | 0.4 | - | ns | |
*2: At 1300 nm
*3: At 30 minutes after high voltage is applied with shutter closed and anode radiant sensitivity = 10000 A/W.

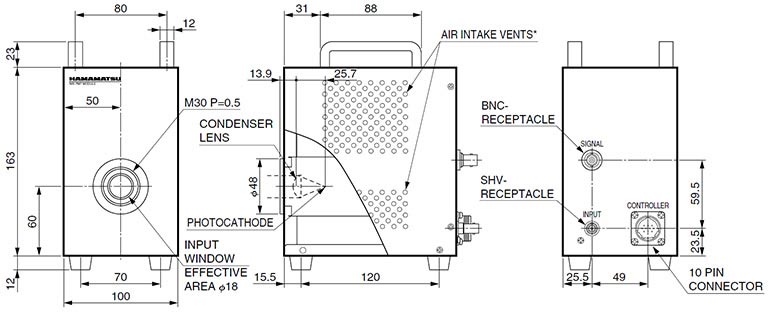

Dimensional outline (Unit: mm)
