Multianode photomultiplier tube

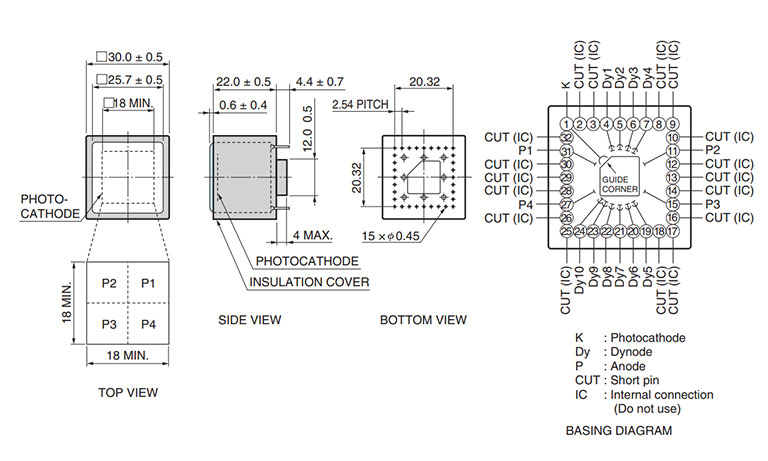

30 mm x 30 mm metal package type, Multialkali photocathode (Effective area : 18 mm x 18 mm dia./Spectral response : 300 nm to 920 nm), 2 x 2 multianode type
|Type||Metal package type|
|Tube Size||30 mm x 30 mm|
|Photocathode Area Shape||Multianode|
|Photocathode Area Size||18 mm x 18 mm|
|Wavelength (Short)||300 nm|
|Wavelength (Long)||920 nm|
|Wavelength (Peak)||530 nm|
|Photocathode Material||Extended red multialkali|
|Window Material||Borosilicate glass|
|Dynode Structure||Metal channel|
|[Max. Rating] Anode to Cathode Voltage||900 V|
|[Max. Rating] Average Anode Current||0.1 mA|
|Anode to Cathode Supply Voltage||800 V|
|[Cathode] Luminous Sensitivity Min.||350 μA/lm|
|[Cathode] Luminous Sensitivity Typ.||500 μA/lm|
|[Cathode] Red/White Ratio (R-68) Typ.||0.4|
|[Cathode] Radiant Sensitivity Typ.||78 mA/W|
|[Anode] Luminous Sensitivity Min.||100 A/lm|
|[Anode] Luminous Sensitivity Typ.||500 A/lm|
|[Anode] Radiant Sensitivity Typ.||6.5 x 104 A/W|
|[Anode] Gain Typ.||1.0 x 106|
|[Anode] Dark Current (after 30min.) Typ.||2.5 nA /ch|
|[Anode] Dark Current (after 30min.) Max.||12.5 nA /ch|
|[Time Response] Rise Time Typ.||1.2 ns|
|[Time Response] Transit Time Typ.||9.5 ns|
|[Time Response] Transit Time Spread Typ.||0.36 ns|
|[Anode] Pulse Linearity (2% deviation)||10 mA|
|[Anode] Pulse Linearity (5% deviation)||30 mA|
