Related products | Mini-spectrometers

External trigger coaxial cables


  • Dimensional outlines (unit: mm)


  • Dimensional outlines (unit: mm)

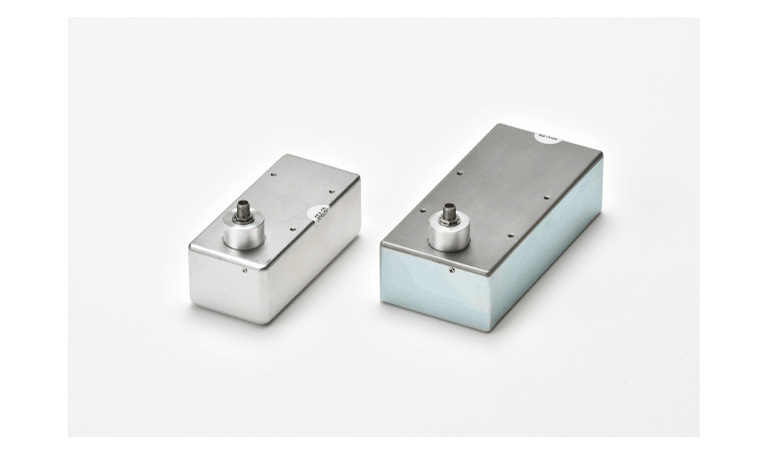

5W xenon flash lamp module

Hamamatsu offers xenon flash lamp modules containing a 5 W xenon flash lamp along with its power supply and trigger socket. Up to 5 W of energy can be input, which is the maximum among lamp modules of this size. These xenon flash lamp modules also deliver high stability and long service life, making them ideal as a light source for water quality and atmospheric analyzers.
Different types of lamp modules are provided: side-on type, head-on type, and twice higher light output type than the other lamp modules currently in use.
Also offered are the SMA fiber adapter type, silent type, and high precision type.


L9455series (High stability type)

L11316series (High output type)

- High stability: 1.5 % CV or less

- Long life: 1 × 109 flashes or more

- Repetitive emission frequency: 530 Hz Max.

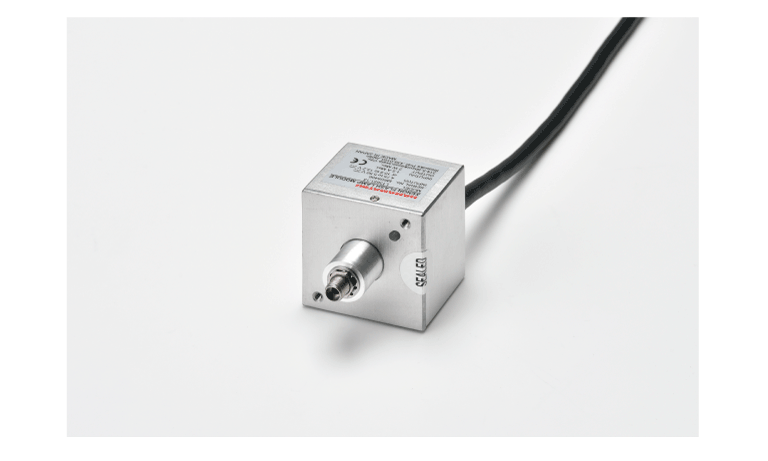

2W xenon flash lamp module

The L13651 series is a 2 W xenon flash lamp module that has achieved miniaturization by integrating the illumination operating circuit. This product is not only an ideal light source for compact analysis equipment used in environmental analysis, sampling tests, and the like but also can be incorporated in portable analysis equipment used in high accuracy environment monitoring, POCT, and the like with operation on a 5 V mobile battery, whose development is expected in the future.



- Compact size:  42 × 42 × 37 mm

- Long life: 1 × 109 flashes

- Repetition rate: 1250 Hz Max.

- Broad spectrum: UV to middle IR

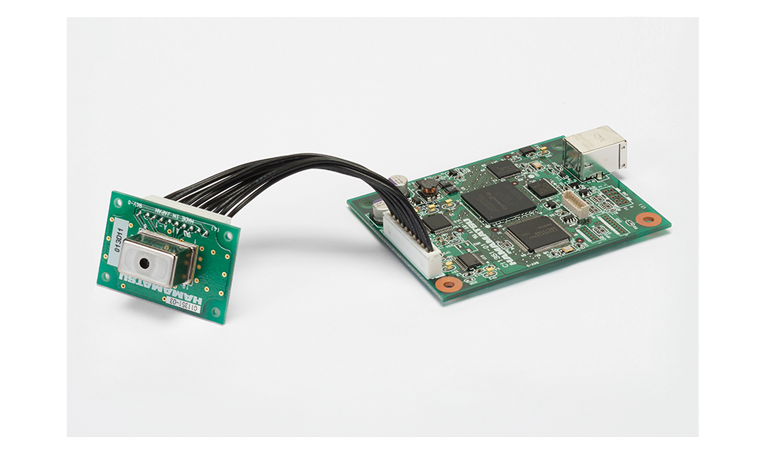

Micro-spectrometer evaluation circuit

A circuit board designed to simply evaluate the characteristics of the micro-spectrometer is available (sold separately). The micro-spectrometer is connected to a PC with a USB cable A9160 (AB type, sold separately). Evaluation software is included.

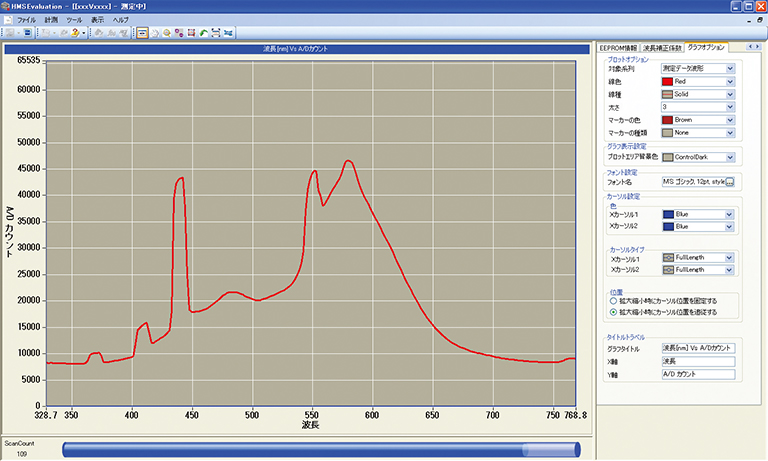

Evaluation software display example

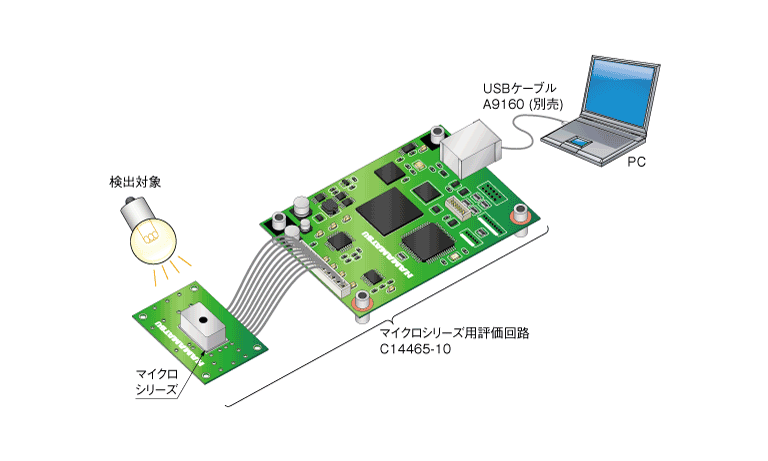

Connection example

Contact us for more information.
