Applicable up to 2.1 μm, Low dark current, Non-cooled type NIR image sensor

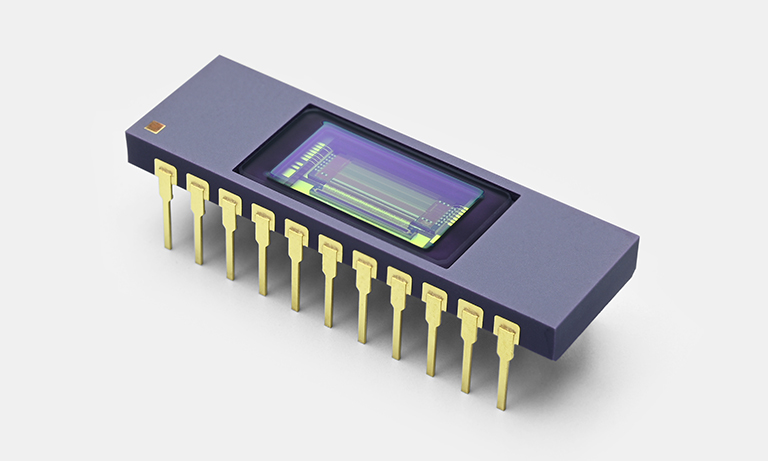

InGaAs linear image sensors G16823 / G16824 / G16825 series

  • Hamamatsu Photonics K.K. Solid State Division

These are InGaAs linear image sensors designed for near-infrared multichannel spectrophotometry.

They achieve low dark current while being driven at room temperature.
The long wavelength type in this series is smaller than the previous TE-cooled type.

Features

  • Single video line
  • Selectable from two conversion efficiency types
    (CE=16 nV/e-, 160 nV/e-)
  • Pixel size:
    50 µm × 250 µm (G16823-128DB)
    25 µm × 250 µm (G16823/G16824/G16825-256DG)
  • Low dark current
  • Low power consumption
  • Drive voltage: 3.3 V

Applications

  • Near infrared multichannel spectrophotometry
  • Process analysis device
  • Portable analytical instruments

Spectral response

Specifications

Type No. G16823-128DB G16823-256DG G16824-256DG G16825-256DG
Image size (mm) 6.4 × 0.25
Pixel size (H × V) (μm) 50 × 250 25 × 250
Pixel pitch (μm) 50 25
Number of effective pixels 128 256
Spectral response range (typ.) (μm) 0.9 to 1.7 0.9 to 1.9 0.9 to 2.1
Peak sensitivity wavelength (typ.) (μm) 1.55 1.70 1.85
Dark current (max.) (pA) 3 1 2 5
