Compact imaging plate reader module with high resolution and high speed

Imaging plate reader module C15082

  • Hamamatsu Photonics K.K. Solid State Division

The imaging plate reader module C15082 is an integratable optical module specialized for reading imaging plates in CR (computed radiography).

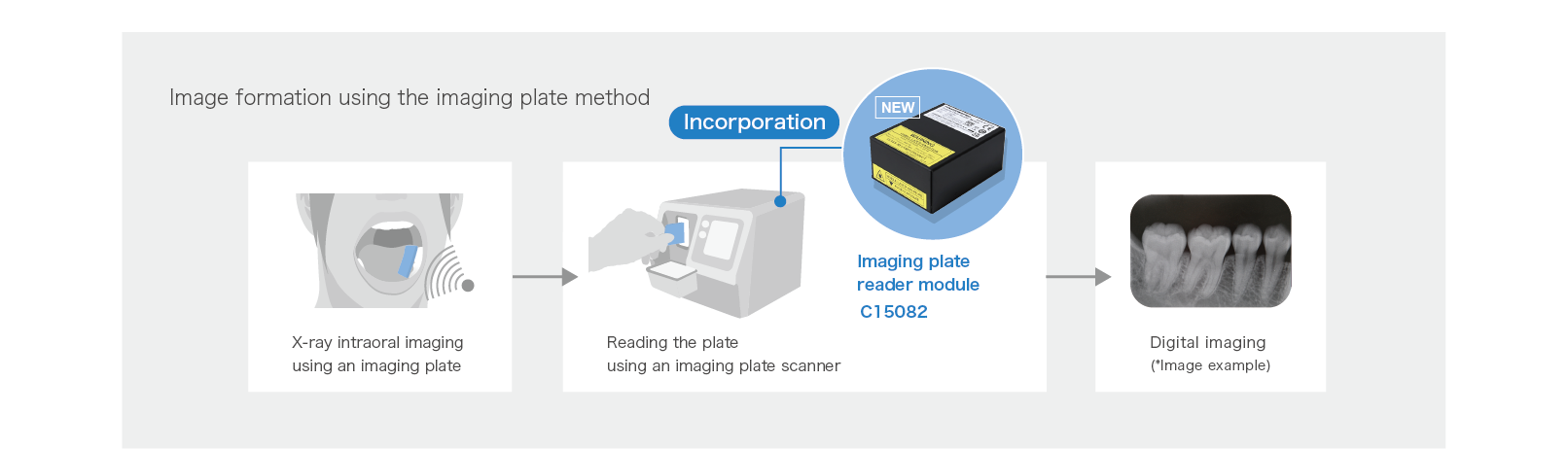

It is designed for incorporation into dental imaging plate scanners and similar devices. The excitation laser, MEMS mirror for laser scanning, and MPPC for fluorescence detection are housed in a compact enclosure. These components are optically tuned with high precision, resulting in a high signal-to-noise (S/N) ratio and excellent image resolution.

Configuration and features

C15082 consists of a laser scan engine, an MPPC assembly, and a driver circuit. The laser scan engine is a compact laser assembly for exciting the imaging plate. It integrates a 660 nm laser diode and a MEMS mirror for precise laser scanning.
The MPPC assembly uses a Hamamatsu MPPC array, a highly sensitive detector that enables high-resolution digital imaging.





Key features:

  • High resolution: Capture fine image details for diagnostic accuracy.
  • High-speed reading: Efficient scanning workflow.
  • High S/N ratio: Clear, low-noise images.
  • Ultra-compact: Just 75 × 60 × 34 mm, easily integrated into space-constrained equipment.

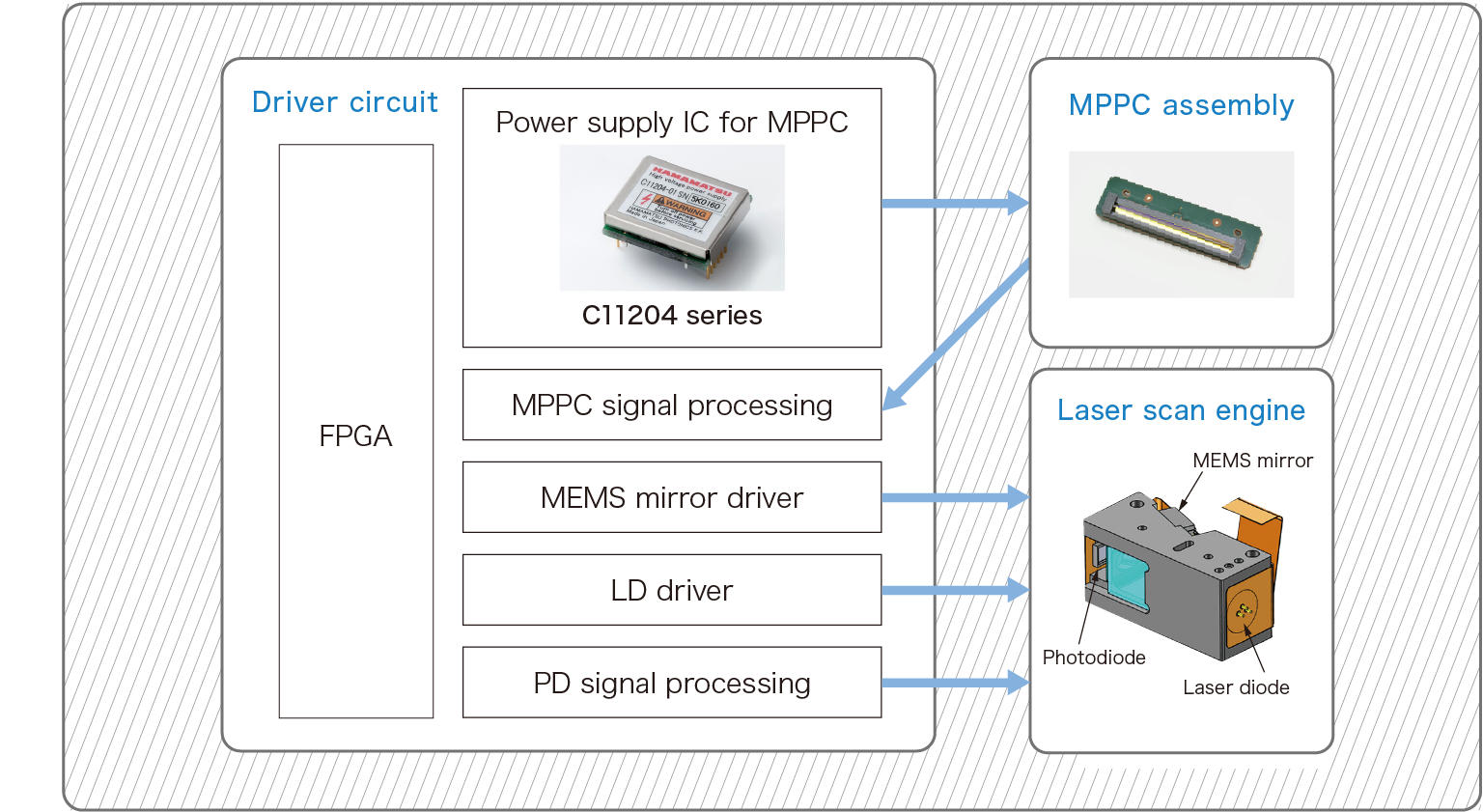

Structure diagram of the imaging plate reader module
