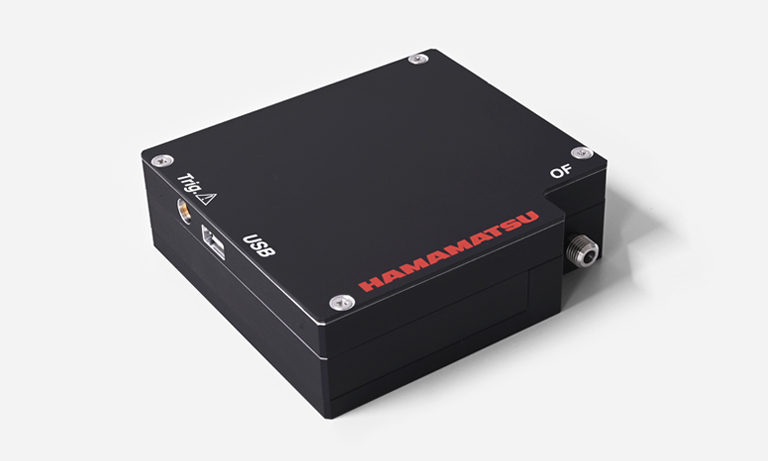

WS Series Mini-Spectrometers with Reflective Gratings – New Release
C16449MA-01 / C16449MA-02
- Hamamatsu Photonics K.K. Solid State Division
The WS Series mini-spectrometers are Hamamatsu’s newest product line, designed to deliver compact size, high resolution, and wide UV to NIR spectral coverage in one lightweight enclosure. These spectrometers integrate a reflective grating optical system, high-sensitivity CMOS sensor, and driver circuit, making them ideal for modern spectroscopy applications in both research and industry.
C16449MA-01 – Wide Spectral Range
This new model offers a broad spectral response range from UV to NIR. It is versatile across industries including materials analysis, quality control, and scientific research.
C16449MA-02 – High Resolution for LIBS
The new model is optimized for high spectral resolution with a tailored wavelength range. This makes it particularly suited for LIBS (laser-induced breakdown spectroscopy) and other advanced analytical applications where precise spectral detail is critical.
Key Features
- Wide spectral response range (C16449MA-01)
- High spectral resolution (C16449MA-02)
- Reflective grating for customizable wavelength and resolution
- High-sensitivity CMOS image sensor (performance equivalent to CCD)
- Trigger and electronic shutter functions
- USB bus powered – no external power supply required
Applications
- Film thickness measurement for coatings and thin film
Ideal for monitoring thin films and coatings, ensuring consistent quality in manufacturing and R&D.
- LIBS
The high resolution of the C16449MA-02 makes it particularly effective for LIBS analysis, supporting detailed material characterization.
- Color measurement in manufacturing and R&D
Accurately measures color in industrial and research environments, ensuring reliable results in product development and quality control.
- Gas analysis in environmental monitoring and industrial settings
Supports environmental monitoring and industrial gas analysis, detecting and characterizing gases with high precision.
Flexible Customization
The reflective grating design allows the WS Series to be custom-tailored to customer requirements. Spectral response range and resolution can be optimized for specific applications.
Contact us to discuss your custom requirements for wavelength range, resolution, or integration support.
Specifications
| Type No. | C16449MA-01 | C16449MA-02 |
|---|---|---|
| Spectral response range (nm) | 190 to 1100 | 200 to 600 |
| Spectral resolution Typ. (nm) | 1.0 | 0.45 |
| Dimensions (mm) | 80 × 75 × 25 | |
| Interface | USB 2.0 | |
