Large active-area InAsSb detectors for room-temperature MWIR sensing: Technical considerations for legacy PbSe technology replacement

Room‑temperature mid‑wave infrared (MWIR, 3–5 µm) detectors are widely used in NDIR gas sensing, industrial monitoring, environmental sensing, and portable analytical instruments. PbSe detectors have historically been adopted because they offer strong MWIR sensitivity, relatively large active areas, and straightforward integration into compact optical designs.

However, their photoconductive operation can introduce excess low‑frequency noise, slower response, drift, and aging effects that increase calibration burden and reduce long‑term measurement stability. These limitations, combined with lead‑related RoHS considerations, are driving interest in large‑active‑area InAsSb photovoltaic detectors as a practical, room‑temperature alternative.

Requirements for modern MWIR sensor systems

Modern MWIR systems increasingly require:

Reliable room-temperature operation
Low noise and stable baseline behavior
Fast response for modulated or transient signals
Repeatable performance across production volumes
Compatibility with compact, cost-optimized optics

PbSe detectors can meet basic sensitivity requirements, but their photoconductive architecture may limit stability, modulation bandwidth, and long‑term maintainability.

PbSe and InAsSb operating principles

PbSe detectors operate in photoconductive mode and require external bias. Photoconductive gain can increase responsivity but may also introduce excess 1/f noise at low operating frequencies, affecting baseline stability and calibration in long-duration measurements ^[1].

InAsSb detectors operate in photovoltaic mode and typically generate signal without detector bias. The large active area detectors recently achieved by state-of-the-art semiconductor fabrication technology allowe greater flexibility in filter selection, optical layout, and application design ^[2].

Detector type	Operating behavior	System implication
PbSe photoconductive	Requires detector bias; signal is generated through a light-induced change in resistance.	Useful responsivity but may contribute excess low-frequency noise, baseline drift, and calibration burden.
InAsSb photovoltaic	Generates photo-voltage or photo-current at a junction, without bias.	Supports faster response, lower-noise operation, and more stable long-duration behavior.

Table 1: PbSe photoconductive versus InAsSb photovoltaic operating behavior and system implications.

Methodology and measurement example

Example NDIR measurement configuration

A typical room-temperature MWIR NDIR system includes:

A infrared source
A gas cell or sample path
Wavelength-selective optical filters
A detector
A low-noise readout circuit

In this configuration, a large-active-area InAsSb detector helps maintain optical throughput while supporting faster modulation and stable baseline behavior.

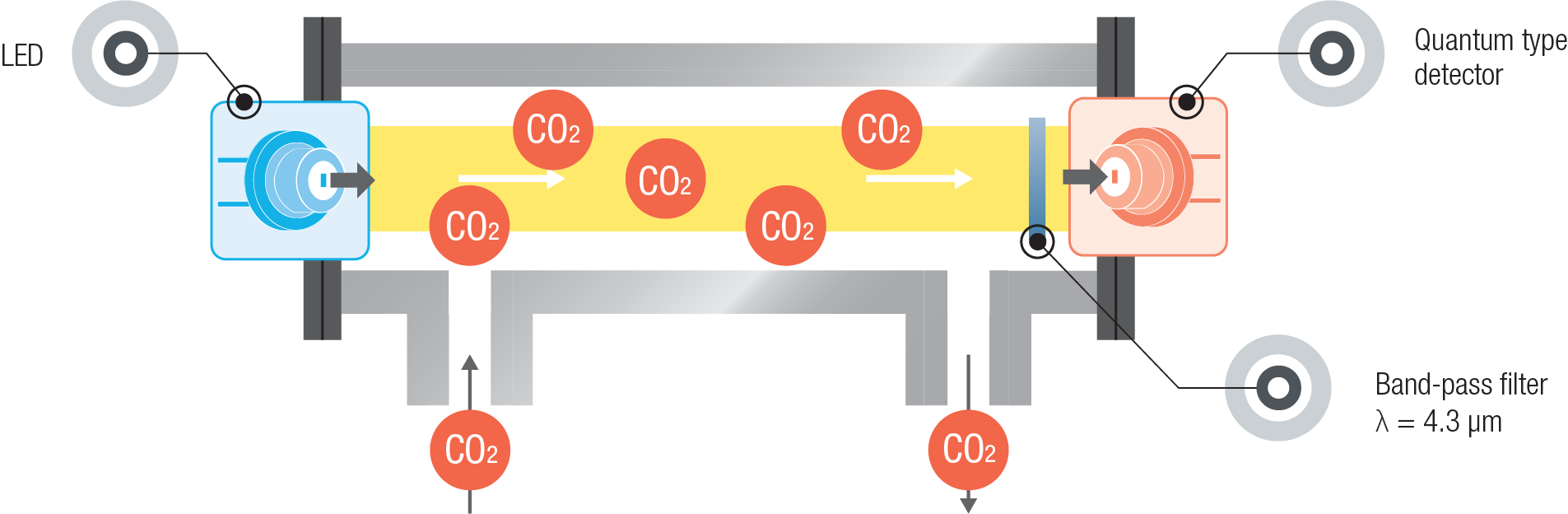

Example NDIR optical path: infrared source, sample cell, optical filter, large-active-area InAsSb detector, and signal-processing electronics.

Fig. 1: Example NDIR optical path: infrared source, sample cell, optical filter, large-active-area InAsSb detector, and signal-processing electronics.

Parameters under evaluation

Detector selection was compared at the system level, considering:

Linearity and dynamic range
Response time and modulation bandwidth
Baseline stability and reliability
Optical throughput and alignment tolerance
Production repeatability
Regulatory and lifecycle requirements

This approach reflects practical constraints in compact MWIR instruments, where optical layout, stability, and manufacturability often limit performance more than detector sensitivity alone.

Performance Results

Linearity and Dynamic Range

InAsSb photovoltaic detectors offer excellent linearity, allowing stronger light sources to be used without attenuation. Their wide dynamic range can improve signal quality and enable the detection of a broad range of gas concentrations. In MWIR NDIR gas sensing, this means the system can operate without changing the light source intensity, making it simpler and more robust.

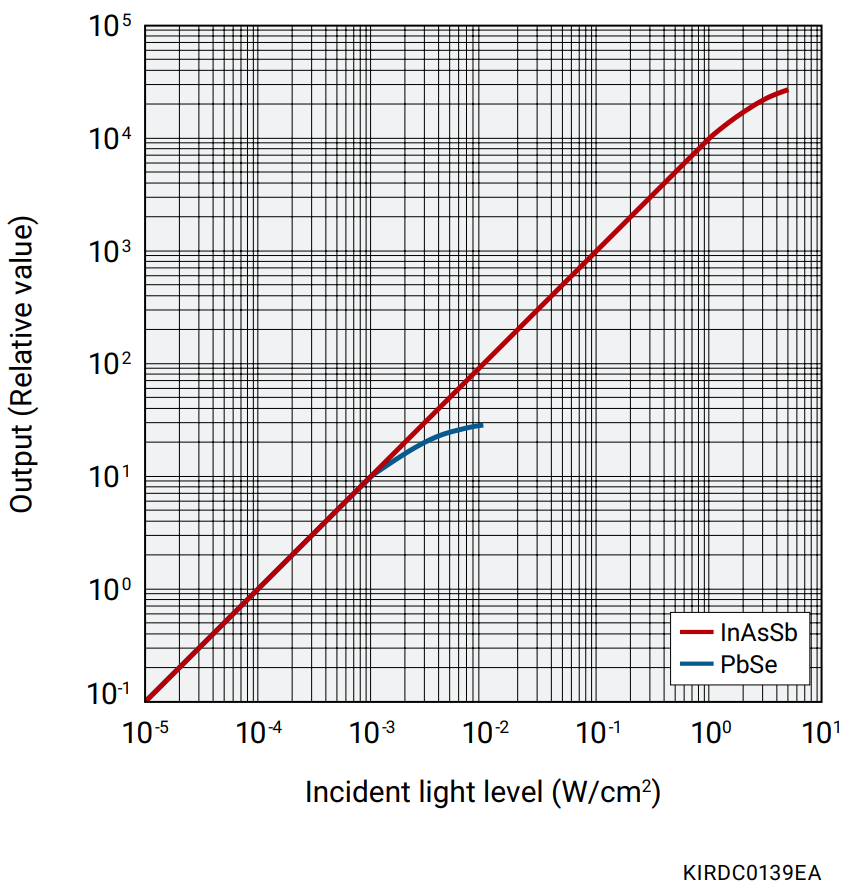

Typical output linearity of InAsSb detector compared to PbSe.

Fig. 2: Typical output linearity of InAsSb detector compared to PbSe.

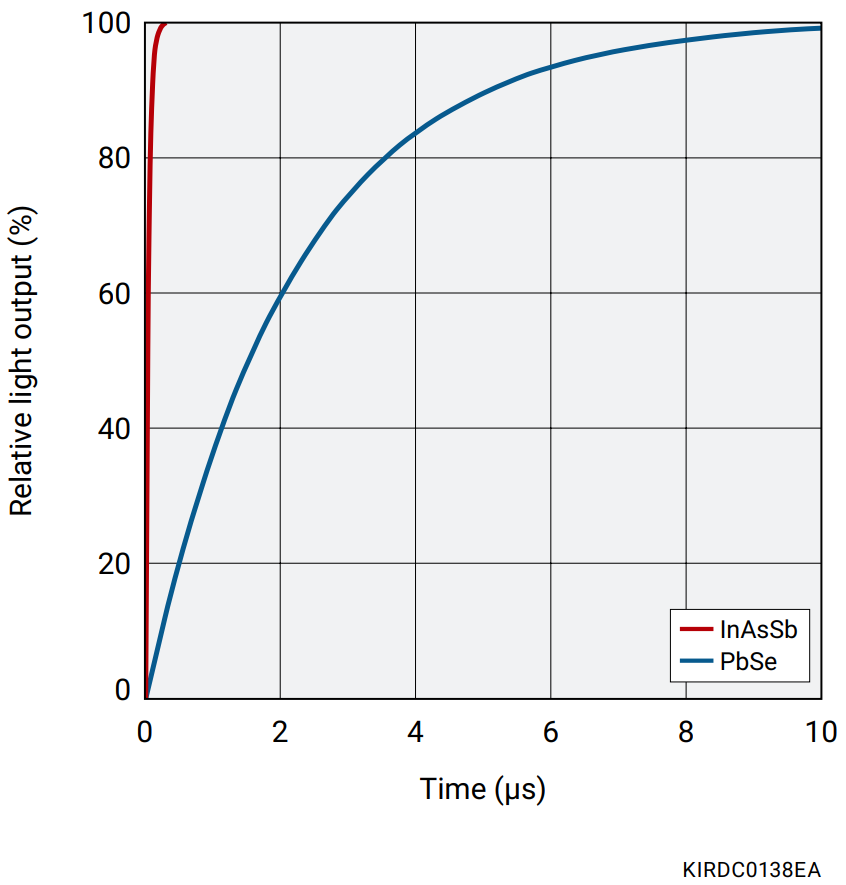

Typical response speed of InAsSb detectors compared to PbSe

Fig. 3: Typical response speed of InAsSb detectors compared to PbSe

Response Speed and Modulation Bandwidth

Fast temporal response enables higher modulation frequencies, improved measurement throughput, and more flexible digital signal processing. InAsSb detectors typically achieve nano to microsecond scale response, supporting chopped-source, pulsed-source, and dynamically changing measurement conditions. When coupled with lock-in amplification, a MWIR NDIR gas sensor can benefit from faster sensor response by achieving a lower limit of detection for its target gas.

Detector	Architecture	Typical response time	Bandwidth implication	System impact
PbSe detector	Photoconductive	Microsecond-scale	Suitable for low- to mid-frequency optical chopping or modulation; may limit higher-frequency operation depending on detector design and readout electronics.	May constrain modulation frequency, settling time, and measurement throughput in faster MWIR sensing systems.
InAsSb detector	Photovoltaic	Nano- to microsecond-scale	Supports higher modulation frequencies and faster transient measurements.	Enables faster signal acquisition, improved compatibility with digital lock-in and readout techniques, and more responsive MWIR sensing systems.

Table 2: Response-time and bandwidth characteristics summarized from published comparisons of room-temperature PbSe and InAsSb MWIR detector technologies ^{[2], [3].}

Baseline Stability and Reliability

Stable detector behavior reduces calibration burden and supports confidence in long-duration measurements. Large-active-area InAsSb detectors maintain consistent electro‑optical characteristics over time and temperature, supporting reproducible system performance.

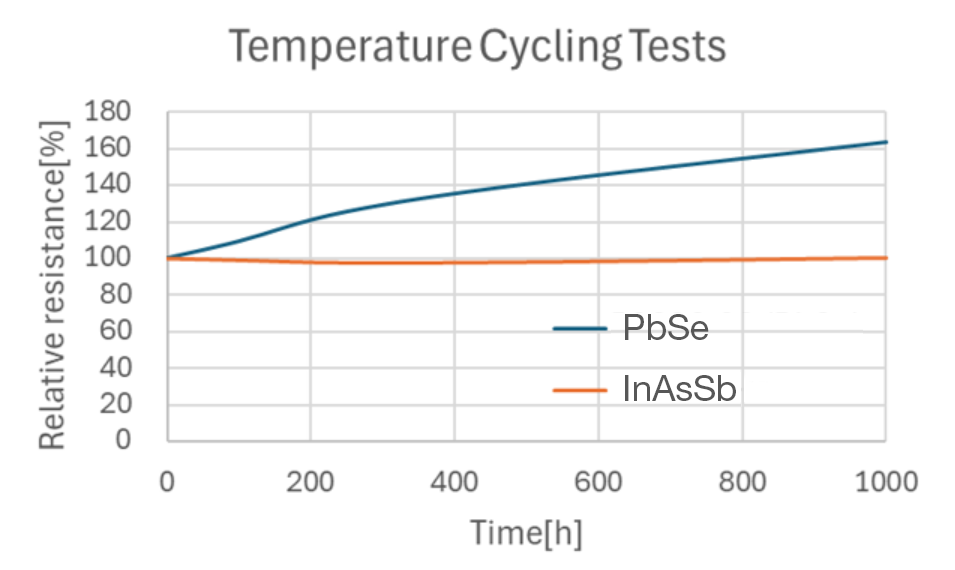

Typical behavior over time for InAsSb and PbSe detectors.

Fig. 4: Typical behavior over time for InAsSb and PbSe detectors.

Optical Throughput and System-Level Impact

A larger detector area collects more optical signals, relaxes source, filter, and detector alignment, and simplifies compact optical designs. For PbSe replacement programs, millimeter-scale InAsSb devices allow OEMs to retain existing optical concepts while improving response speed, baseline stability, reproducibility, and regulatory positioning.

RoHS and Lifecycle Considerations

PbSe detectors contain lead and may depend on RoHS exemptions. InAsSb detectors can support an intrinsically compliant detector strategy.

For OEMs and system integrators, this can:

Reduce dependency on temporary exemptions
Simplify compliance documentation and supply-chain qualification
Lower regulatory risk for future product revisions

As regulatory frameworks tighten, moving from exempted materials toward inherently compliant technologies is becoming a strategic lifecycle decision ^[6].

Applications and Detector Selection

Target Applications

Large‑active‑area InAsSb detectors are suitable for:

NDIR gas sensing for CO₂, CH₄, and hydrocarbons
Industrial and process-control sensors
Environmental monitoring
Remote temperature monitoring
Portable analytical instruments
Medical and breath-analysis systems

PbSe-to-InAsSb Selection Guide

Detector selection should consider system‑level constraints such as optical design, stability, manufacturability, compliance, and lifecycle requirements.

Design factor	InAsSb benefit	Why it matters
Speed and modulation	Fast photovoltaic response supports chopped, pulsed, and digitally processed MWIR signals.	Higher modulation frequencies improve throughput and signal processing flexibility.
Optical throughput	Large active area improves light collection and relaxes alignment tolerance.	Compact sensors are often limited by source power, alignment, and optical layout.
Baseline stability	Photovoltaic operation supports lower-noise, stable signal behavior.	Signal drift increases calibration burden.
PbSe migration	Large-area InAsSb offers a practical migration path with improved speed and stability.	OEMs often refresh platforms without redesigning the full optical path.
Regulatory planning	InAsSb supports a lower-risk, RoHS-ready strategy.	Lead-based detector materials can depend on RoHS exemptions.

Conclusion

Large-active-area InAsSb detectors combine photovoltaic operation, room-temperature MWIR sensitivity, fast response, stable baseline behavior, and practical optical collection.

For OEMs and system integrators, they offer a direct, lower-risk route for replacing legacy PbSe technology without unnecessary optical compromise, while supporting RoHS-ready lifecycle planning and stable long‑term system performance.

References

^[1] G.-D. Zhang, Q.-S. Zhu, B.-C. Xue et al., “Research Status and Development Trend of Uncooled PbSe Mid-Infrared Photo-Conductive Detectors,” Infrared, vol. 45, no. 5, pp. 1-17, 2024. Accessed June 2026

^[2] “Room-temperature operated MWIR detector comparison study,” PMC (PubMed Central). Available: https://pmc.ncbi.nlm.nih.gov/articles/PMC7763214/. Accessed June 2026

^[3] “Performance comparison of room-temperature operated mid-infrared IV-VI and III-V detectors,” SPIE Digital Library. Available: https://www.spiedigitallibrary.org/conference-proceedings-of-spie/PC13892/PC138920B/Performance-comparison-of-room-temperature-operated-mid-infrared-IV-VI/10.1117/12.3081662.full. Accessed June 2026

^[4] Infrared Materials, “RoHS Directives.” Available: https://infraredmaterials.com/resources-2/rohs-directives/. Accessed June 2026

^[5] Laser Components, “RoHS Directives for PbS/PbSe Detectors.” Available: https://www.lasercomponents.com/fileadmin/user_upload/home/Datasheets/lc-lead-salt/rohs-directives-pbs-pbse.pdf. Accessed June 2026

^[6] European Commission, “RoHS Directive Implementation.” Available: https://environment.ec.europa.eu/topics/waste-and-recycling/rohs-directive/rohs-directive-implementation_en. Accessed June 2026
