Hamamatsu Photonics has established high-density integration technology for chip-scale light sources and succeeded in creating an iPMSEL array that emits laser beams in various freely switchable patterns. This iPMSEL array will expand the range of high-pr

2021/10/26

iPMSEL array

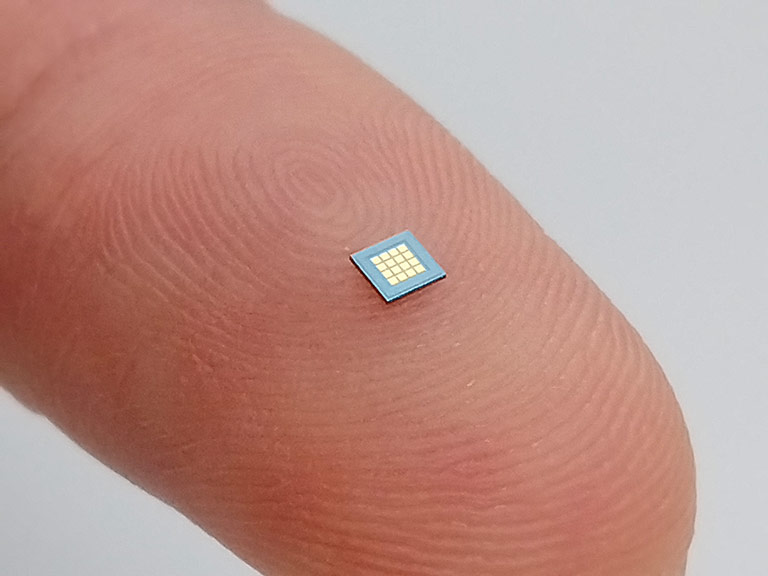

Hamamatsu Photonics has established high-density integration technology for iPMSELTM (integrable Phase Modulating Surface Emitting Laser) elements. These are the world’s smallest class semiconductor lasers capable of emitting light beams in 2D patterns. By leveraging this technology, we succeeded in developing an iPMSEL array consisting of 16 elements formed in 4 rows and 4 columns on a tiny chip only 2 millimeters square. Each iPMSEL element on the chip can be independently switched to emit light beams in various patterns making the iPMSEL array an ideal light source for industrial 3D shape measurement systems requiring very high accuracy. The iPMSEL array is also ideal for boosting motion capture and facial recognition accuracy. Moreover, their tiny size and light weight will also make them indispensable for compact handheld fiberscopes in medical and industrial fields.

A portion of this research and development work was supported by Japan Science and Technology Agency (JST) Center of Innovation (COI) Grant Number JPMJCE1311.
