CW laser diode

L8763-42

These diodes generate higher output power, operating in multiple lateral modes. The most suitable LD can be selected from an assortment of wavelengths, size of emitting areas, output power, etc.

Type number L8763-42
Type Lateral Multimode LDs (broad stripe)
Operating temperature 0 to + 30 ℃
Storage temperature - 30 to + 80 ℃
Peak emission wavelength min. 798 nm
Peak emission wavelength typ. 808 nm
Peak emission wavelength max. 810 nm
Output power typ. 1 W
Operating current typ. 1.2 A
Spectral radiation half bandwidth typ. 2 nm
Operating voltage typ. 2 V
Emitting width 50 × 1 μm
Beam spread angle _parallel typ. 8 °
Beam spread angle _vertical typ. 32 °
Lasing threshold current typ. 0.35 A
Package dia. 9.0CD

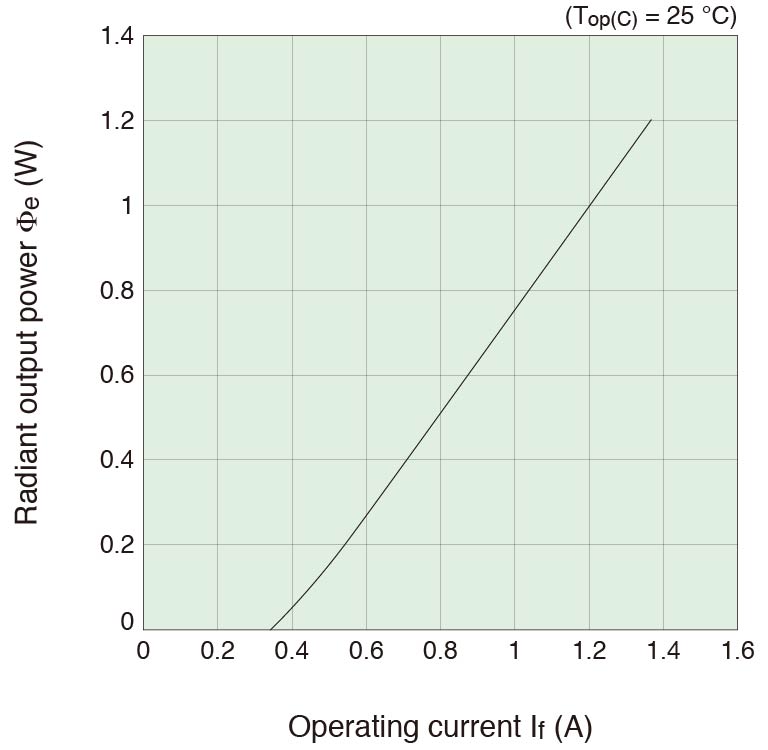

Radiant output power vs. Operating current (typ.)

Typical emission spectrum

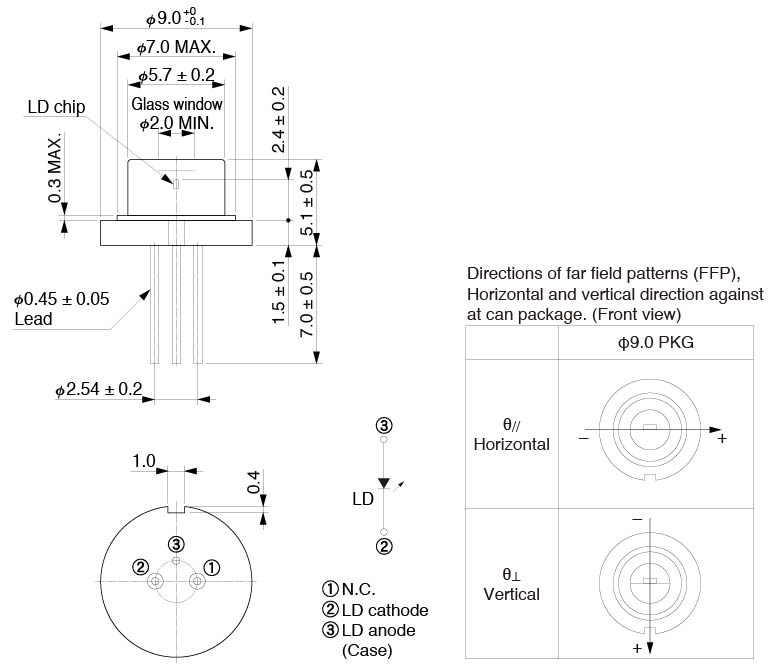

Dimensional outline (unit: mm)
