FLAT EXCIMER

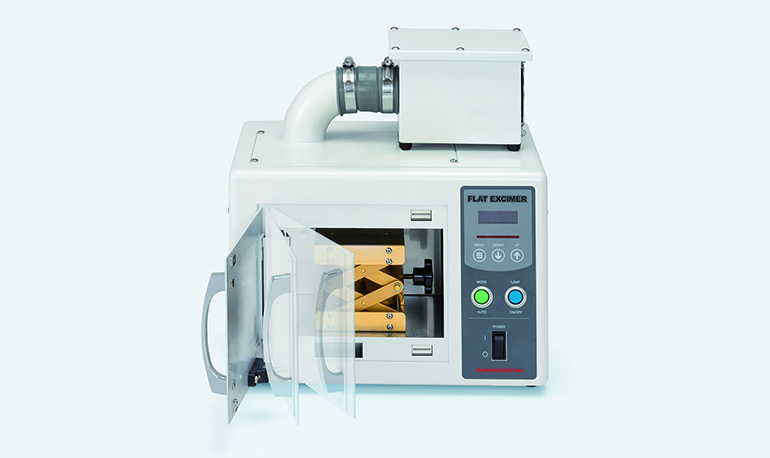

EX-mini
Its amazing lightness makes it easy to conduct high-precision experiments and evaluations anywhere.
It has the same lamp performance as the EX-86U.
Features
- Compact and lightweight for portability
- All-in-one light source integrated with the irradiation box
- Ozone decomposition unit E12685 (optional)
The portable size and weight mean that there are no restrictions in terms of installation location or operating environment.
Since there is no need to design an irradiation box, etc., you can use it immediately with just this one unit.
It has cooling and ozone decomposition functions, and by installing it on the EX-mini, an exhaust duct is no longer required, enabling indoor exhaust.
Internal dimensions (W × H × D) :
204 mm × 118 mm × 139 mm
(excluding protruding parts)
NOTE: Sample stand (jack, etc.) is not included.
Specifications
| Items | Description / Value | Unit | ||
|---|---|---|---|---|
| Window material | Quartz glass | － | ||
| Irradiation window size | 86 × 40 | nm | ||
| Peak wavelength | 172 | nm | ||
| UV irradiance (*1) | Min. | 50 | mW/cm2 | |
| Lamp guaranteed life (*2) | 1000 | h | ||
| Lamp design life | 2000 | h | ||
| Replacement lamp (sold separately) | L12681-02 | － | ||
| Nitrogen flow rate | 10 ～ 30 | L/min | ||
| Input voltage (AC) | 100 V to 240 V, single-phase 50 Hz / 60 Hz | － | ||
| Power consumption | Max. | 150 | VA | |
| Cooling method | Forced air cooling by the ozone decomposition unit E12685 or duct (*3) | － | ||
| Operating temperature range | +5 ℃ to +35 ℃ | － | ||
| Storage temperature range | -5 ℃ to +55 ℃ (no freezing) | － | ||
| Operating humidity range | 30 % to 80 % (no condensation) | － | ||
| Storage humidity range | 80 % or below (no condensation) | － | ||
| External control | Lighting control, lighting signal, various alarms/error signals | － | ||
| Applicable standards | EMC standards | IEC 61326-1 Emission limits: CISPR 11 Group 2 Class A Immunity requirements: Table 2 |
－ | |
| Safety standards | IEC 61010-1/A1 | |||
| IEC 62471 Risk Group 2 | ||||
*1: Value measured by Hamamatsu UV power meter C9536, H9535-172 at the nearest position to the lamp.
*2: The lifetime is defined as the point at which the UV irradiance drops to 70 % of the initial value or when the lamp stops lighting.
*3: The optional ozone decomposition unit E12685 has cooling and ozone decomposition functions, and by using it an exhaust duct is no longer required.
When an exhaust duct is used, exhaust at a duct suction rate of 0.25 m3/min to 0.35 m3/min.
Also, since the exhaust air contains ozone, install an ozone decomposition filter as necessary.
Dimensional outlines (Unit: mm)
External control connector (15-pin D-sub) connection
| Pin No. | Signal | |
|---|---|---|
| 1 | Manual irradiation |
Input |
| 2 | Manual irradiation lighting control signal (-) |
Input |
| 3 | Auto irradiation lighting control signal (+) |
Input |
| 4 | Auto irradiation lighting control signal (-) |
Input |
| 5 | Lighting signal | Output |
| 6 | Error signal | Output |
| 7 | No connection | ー |
| 8 | No connection | ー |
| 9 | Output voltage (+24 V) | Output |
| 10 | Output voltage (+24 V) | Output |
| 11 | Output voltage (+24 V) | Output |
| 12 | GND. | ー |
| 13 | GND. | ー |
| 14 | GND. | ー |
| 15 | GND. | ー |
Accessories
- AC cable (2 m)
- External fan shorting connector
