Infrared LED

L13141-0085K

High reliability LED



The L13141-0085K is current confinement type, high reliability infrared LED.


Features
- Reliability improved from the previous product
- Small emission spot: φ110 μm
- Light output power: 2.8 mW (IF=50 mA typ.)
- Low cost



Package Metal
Package Category Low-profile flat cap
Peak emission wavelength (min.) 830 nm
Peak emission wavelength (typ.) 850 nm
Peak emission wavelength (max.) 870 nm
Spectral half-width (typ.) 30 nm
Radiant flux (typ.) 2.8 mW
Forward voltage (typ.) 1.7 V
Cutoff frequency (typ.) 25 MHz
Measurement condition Typ. Ta=25 ℃, unless otherwise noted

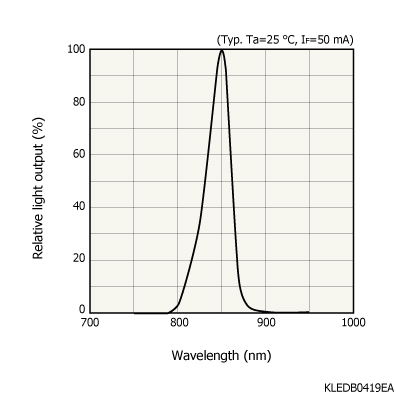

Emission Spectrum

Dimensional outline (unit: mm)
