Infrared LED

L2388-01

TO-46 style GaAs infrared LED


Features
-High radiant output power
-High reliability

Package Metal
Package Category With lens
Peak emission wavelength (min.) 920 nm
Peak emission wavelength (typ.) 945 nm
Peak emission wavelength (max.) 970 nm
Spectral half-width (typ.) 45 nm
Radiant flux (typ.) 3.4 mW
Forward voltage (typ.) 1.3 V
Cutoff frequency (typ.) 0.3 MHz
Measurement condition Typ. Ta=25 ℃, unless otherwise noted

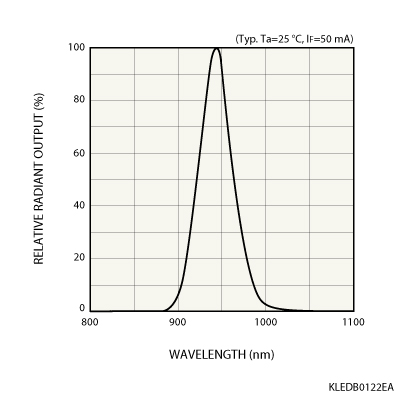

Emission Spectrum

Dimensional outline (unit: mm)
