Infrared LED

L6286

Miniature LED

L6286 is a high output power infrared LED molded into a subminiature, clear plastic package.


Features
-Peak emission wavelength: 940 nm
-High output power
-Subminiature plastic package with lens

Package Plastic
Package Category SIP type (with lens)
Peak emission wavelength (typ.) 940 nm
Spectral half-width (typ.) 45 nm
Forward voltage (typ.) 1.25 V
Measurement condition Typ. Ta=25 ℃, unless otherwise noted

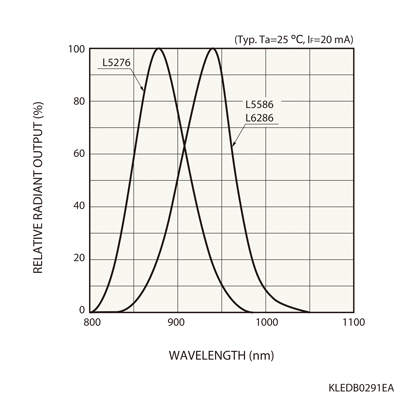

Emission Spectrum

Dimensional outline (unit: mm)
