Infrared LED

L6895-10

High-power LED with miniature package

L6895-10 is a high-power LED molded into a miniature, clear plastic package that emits infrared light at a peak emission wavelength of 940 nm. An optical encoder resistant to tough environmental conditions can be configured by combining L6895-10 with S7610-10 (made by Hamamatsu).


Features
-Pd plated leads
-Miniature package with lens
-Peak emission wavelength: 940 nm

Package Plastic
Package Category SIP type (with lens)
Peak emission wavelength (typ.) 940 nm
Spectral half-width (typ.) 60 nm
Radiant flux (typ.) 1.2 mW
Forward voltage (typ.) 1.25 V
Measurement condition Typ. Ta=25 ℃, unless otherwise noted

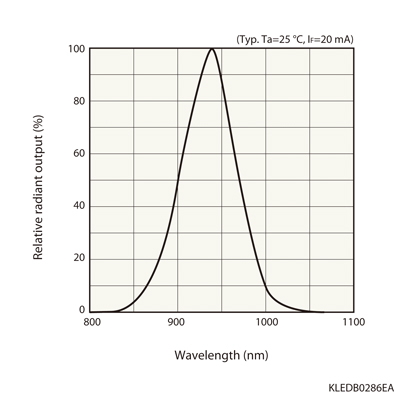

Emission Spectrum

Dimensional outline (unit: mm)
