Microfocus X-ray source

L10321

Tube voltage : 40 kV to 100 kV, Maximum output : 20 W, X-ray focal spot size : 5 um, Short FOD : 7.3 mm, Serial port control : RS-232C



X-ray source for non-destructive inspection of electrical devices, mount boards, automotive parts, etc.

Features

  • Wide X-ray beam angle: 118 °
  • Short FOD (Focus to Object Distance): 7.3 mm
  • Focal spot size: 5 µm (at 4 W)
  • No high voltage cable connection required

Applications

  • Non-destructive inspection
  • X-ray CT

[Applicable objects]

  • Electronic component
  • Printed circuit board
  • Plastic component
  • Metal component

Specifications

Tube Voltage 100 kV
Type Sealed type
Tube Voltage Operational Range 40 kV to 100 kV
Maximum Output 20 W
X-ray Focal Spot Size 5 μm to 30 μm (5 μm at 4 W)
X-ray Beam Angle (Coned) 118 degree
Focus to Object Distance (FOD) 7.3 mm

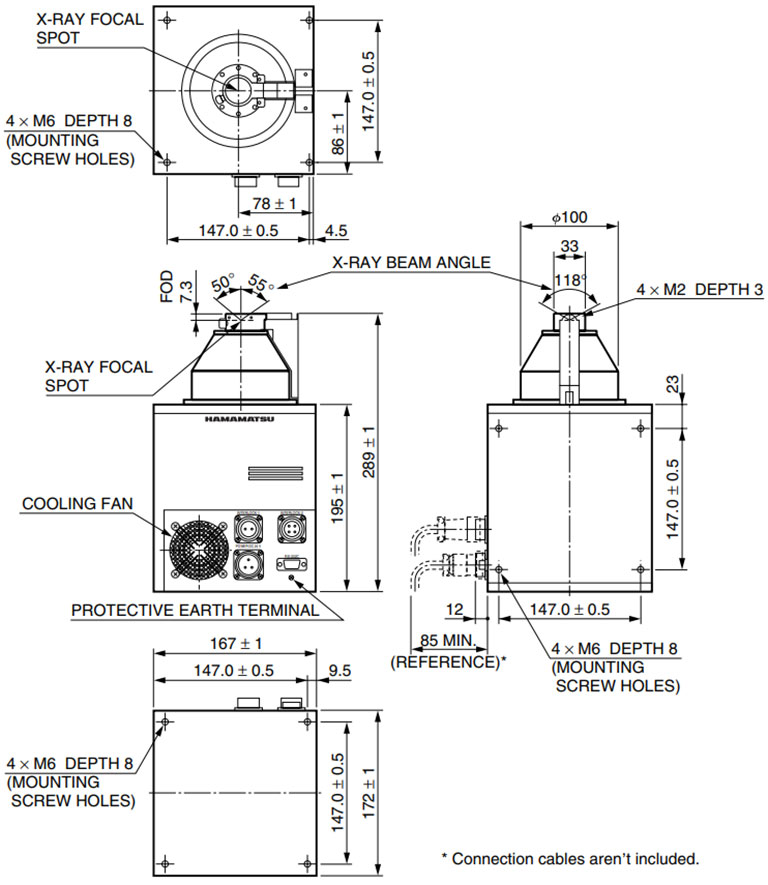

Dimensional outlines (Unit mm)
