Microfocus X-ray source

L15851

Sealed type microfocus x-ray source using the transmission target.

Tube voltage : 90 kV to 130 kV, Maximum output : 39 W, Minimum focal spot size : 11 um, Short FOD : 0.25 mm, X-ray beam angle : 166 degree, Communication method : RS-232C

X-ray source for non-destructive inspection of electrical devices, mount boards, automotive parts, etc.

Features

  • High resolution : 11 µm (at 8 W)
  • High magnification: FOD (focus to object distance) : 0.25 mm
  • Wide X-ray beam angle : 166°
  • Maintenance free

Applications

  • Non-destructive inspection
  • X-ray CT

[Applicable objects]

  • Electronic components
  • Printed circuit boards
  • Plastic components
  • Metal components

Specifications

Tube Voltage 130 kV
Type Sealed type
Tube Voltage Operational Range 90 kV to 130 kV
Maximum Output 39 W
X-ray Focal Spot Size 11 μm (at 8 W)
X-ray Beam Angle (Coned) 166 degree
Focus to Object Distance (FOD) 0.25 mm

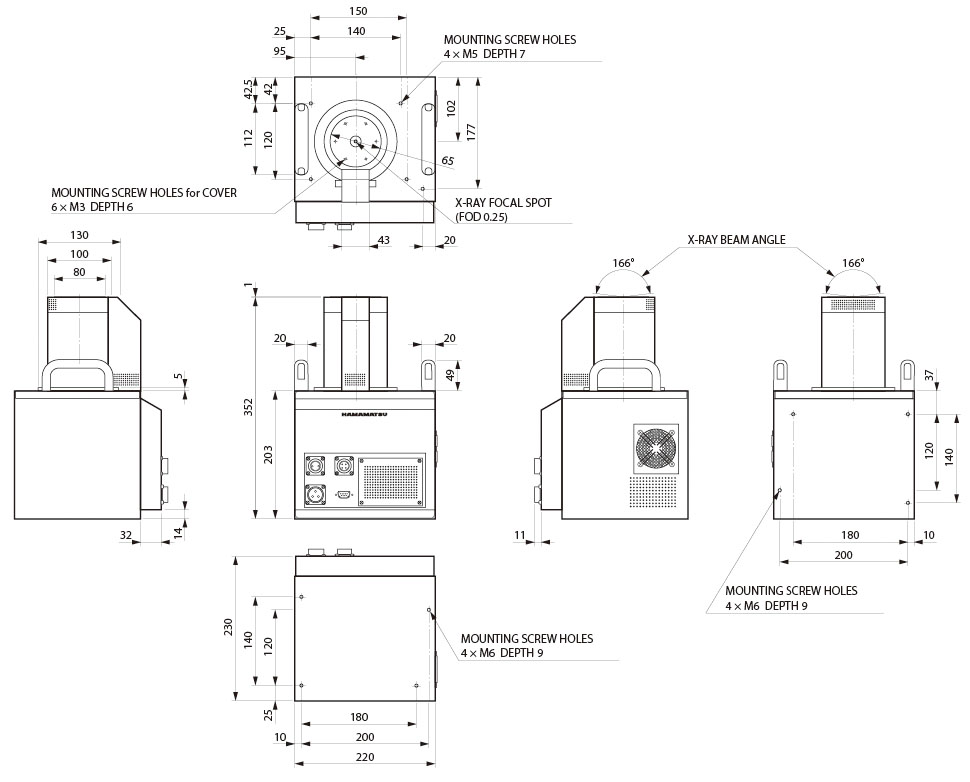

Dimensional outlines (Unit mm)
