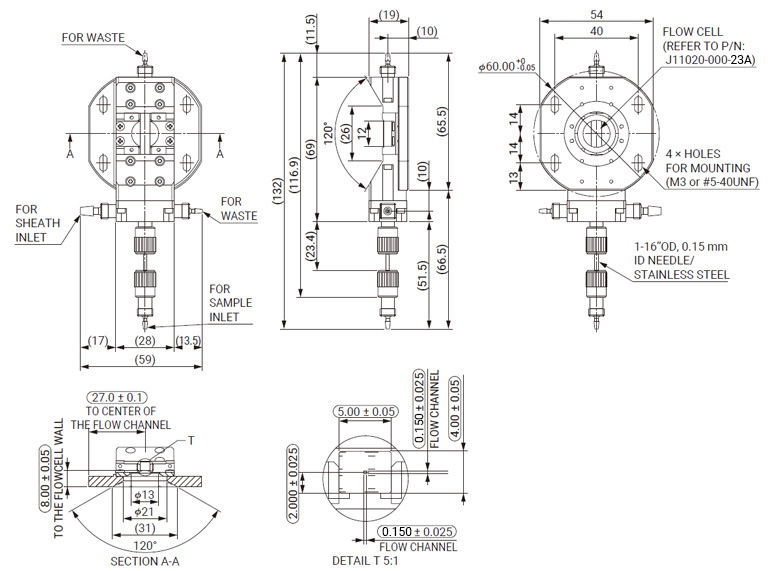

Flow cell assemblies
These flow cell assemblies consist of various component combinations for feeding liquids, and are designed to easily install into analytical instruments such as flow cytometers. A3A is a standard type with a flow channel size of 0.15 mm x 0.15 mm.
|Flow cell||Flow channel size||0.150 × 0.150||0.200 × 0.200||0.250 × 0.250||0.150 × 0.150||0.200 × 0.200||0.250 × 0.250||mm|
|Optical effective areas||5.0 × 2.0||Φ2.0||mm|
|Assembly||Recommended input sheath flow rate||7.0||13.5||19.0||7.0||13.5||19.0||ml/min|
|Input sheath flow rate(Max.)||9.5||15||24||9.5||15||24||ml/min|
|Operating sheath pressure||10 to 180||10 to 120||10 to 100||10 to 180||10 to 120||10 to 100||kPa|
|Connector||Sample inlet port||IDEX P-646||-|
|Sheath inlet port||IDEX P-647||-|
|Waste port||IDEX P-646||-|
|Reverse flow port||IDEX P-646||-|
|Sample needle inside diameter||0.15||mm|
|Operating ambient temperature||+15 to +35||℃|
|Operating ambient relative humidity||<85||％RH|
|Storage temperature||0 to +45||℃|
