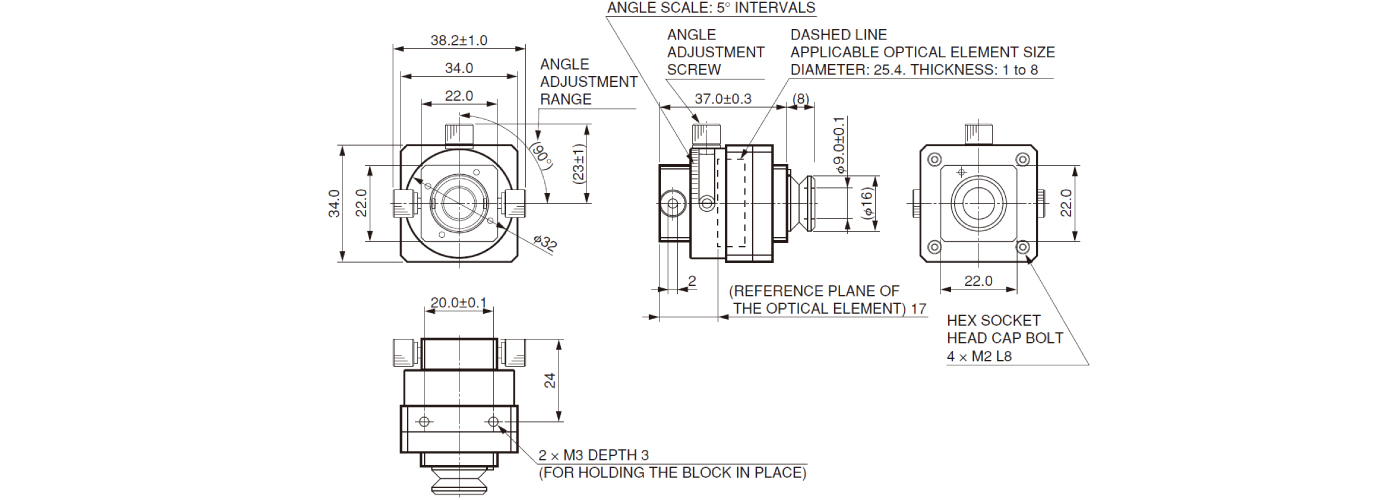

Polarizing filters and waveplates are polarizing elements whose polarization characteristics change depending on direction and angle. The A11026 is a simple, course-movement holder block that can be used to adjust the direction and angle.
|Type No.||Effective beam size||Applicable polarizing element size||Adjustable range||Angle scale||Weight|
|A11026||φ8 mm||Diameter: 25 mm to 25.4 mm
Thickness: 1 mm to 8 mm
|90° *1||5°Intervals *2||Approx. 55 g|
*1: Can be rotated 90° or more by changing the angle adjustment screw position.
*2: Scale indicates adjustment intervals and does not indicate adjustable pitch.Can be fixed at any desired angle within the adjustable range of 90°.
Supplied: Hex wrench S1.5
