Hamamatsu offers a variety of 1-D PSDs (position sensitive detectors)molded into plastic packages.
S3274-05 features excellent position detection resolution, high resistance to disturbance background light and high reliability.
-Excellent position detection resolution
-Thin, miniature plastic package
-Visible-cut package reducing background light noise
-Surface mount package is available
|Photosensitive area||1 x 3.5 mm|
|Peak sensitivity wavelength (typ.)||960 nm|

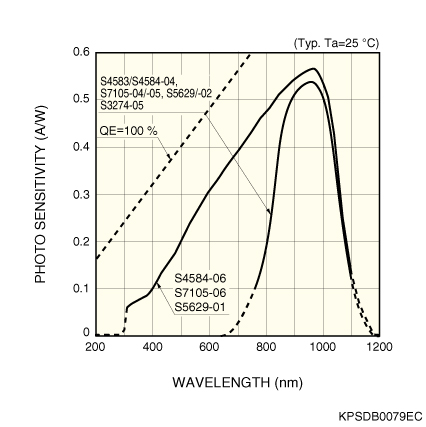

|Photosensitivity (typ.)||0.51 A/W|
|Spectral response range||760 to 1100|
|Dark current (max.)||1 nA|
|Rise time (typ.)||15 μs|
|Terminal capacitance (typ.)||15 pF|
|Interelectrode resistance (typ.)||400 kΩ|
|Measurement condition||Typ. Ta=25 ℃, unless otherwise noted|
