PSD module C10443-06 contains a 4-segment Si photodiode and a low-noise amplifier, and is able to perform accurate distance measurement.
-Photosensitive area: 10 × 10 mm
-High precision analog voltage output
-Only half size of a business card: 34 (W) × 44 (H) × 40 (D) mm
-Three-types with different active areas available
|Detector type||4-segment photodiode|
|Photosensitive area||10 × 10 mm|

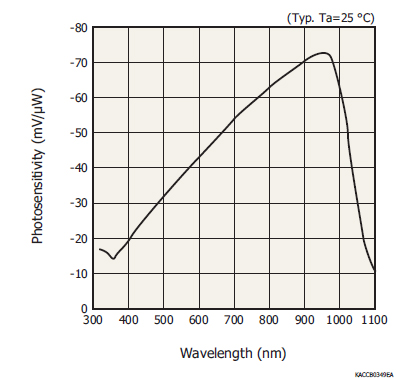

|Spectral response range||320 to 1100 nm|
|Peak sensitivity wavelength||960 nm|
|Photosensitivity (typ.)||-72 mV/μm|
|Supply voltage||±5 to ±12 V|
|Measurement condition||Ta=25 ℃, Vcc=±12 V, unless otherwise noted|
