MCP (microchannel plate)
F1094-01H
/e_mcp_pp01_xx.jpg/_jcr_content/renditions/thumb-e_mcp_pp01_xx.jpg)
MCPs are made of millions to tens of millions of conductive glass capillaries bundled together to form a thin plate. Each of these capillaries (channels) acts as an independent secondary electron multiplier, forming a two-dimensional electron multiplier.
F1094-01H is a circular MCP with a center hole and an effective area of Φ20.0 mm.
Specifications
| Items | F1094-01H *2 | Unit | |
|---|---|---|---|
| Outer size | Φ24.8 | mm | |
| Electrode area | Φ23.9 | mm | |
| Effective area | Φ20.0 | mm | |
| Plate thickness | 0.48 | mm | |
| Channel diameter | 12 | µm | |
| Channel pitch | 15 | µm | |
| Bias angle | 8 | ° | |
| Open area ratio | Min. | 57 | ％ |
| Resistance *3 | 10 to 100 | MΩ | |
| Gain *3 | Min. | 1×104 | ー |
| Electrode material | Inconel | ー | |
| Dark current *3 | 0.5 | pA・cm2 | |
Maximum linear output *3 |
7 % of strip current *1 | ー | |
Supply voltage *4 |
1.0 | kV | |
Operating ambient temperature *4 |
0 to +50 | ℃ | |
| Resistance-match *5 | Within ±10 % | ー | |
*1: Strip current is the current that flows through channel walls when a voltage is applied between MCP IN and OUT. It is given by dividing the applied voltage by the MCP resistance.
*2: The center hole type (-01 H) has a 6 mm diameter hole in the center of the MCP.
*3: Supply voltage: 1.0 kV, vacuum: 1.3 × 10-4 Pa, operating ambient temperature: +25 °C
*4: Vacuum: 1.3 × 10-4 Pa
*5: Resistance-match means that resistance values of MCPs are to be matched when they are used in two stages.

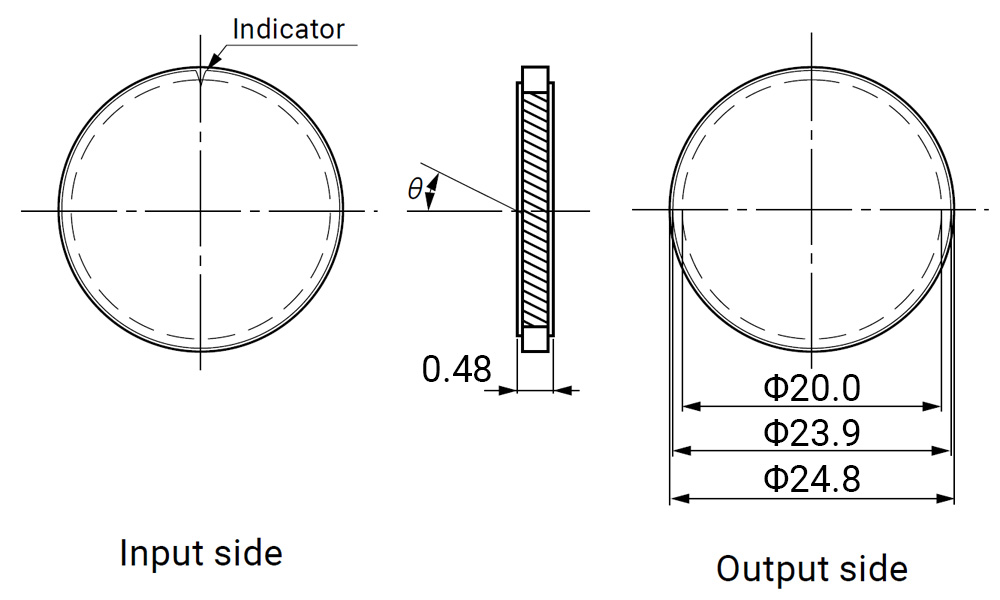

Dimensional outline (Unit:mm)
