MCP (microchannel plate)
F2396-04
/e_mcp_pp02_xx.jpg/_jcr_content/renditions/thumb-e_mcp_pp02_xx.jpg)
MCPs are made of millions to tens of millions of conductive glass capillaries bundled together to form a thin plate. Each of these capillaries (channels) acts as an independent secondary electron multiplier, forming a two-dimensional electron multiplier.
F2396-04 is a microchannel plate (MCP) with a rectangular effective area measuring 90.0 mm × 72.0 mm.
Specifications
| Items | F2396-04 | Unit | |
|---|---|---|---|
| Outer size | 96.9 × 78.9 | mm | |
| Electrode area | 95.6 × 77.3 | mm | |
| Effective area | 90.0 × 72.0 | mm | |
| Plate thickness | 1.00 | mm | |
| Channel diameter | 25 | µm | |
| Channel pitch | 31 | µm | |
| Bias angle | 8 | ° | |
| Open area ratio | Min. | 57 | ％ |
| Resistance *2 | 5 to 50 | MΩ | |
| Gain *2 | Min. | 1×104 | ー |
| Electrode material | Inconel | ー | |
| Dark current *2 | 0.5 | pA・cm2 | |
Maximum linear output *2 |
7 % of strip current *1 | ー | |
Supply voltage *3 |
1.0 | kV | |
Operating ambient temperature *3 |
0 to +50 | ℃ | |
| Resistance-match *4 | Within ±10 % | ー | |
*1: Strip current is the current that flows through channel walls when a voltage is applied between MCP IN and OUT. It is given by dividing the applied voltage by the MCP resistance.
*2: Supply voltage: 1.0 kV, vacuum: 1.3 × 10-4 Pa, operating ambient temperature: +25 °C
*3: Vacuum: 1.3 × 10-4 Pa
*4: Resistance-match means that resistance values of MCPs are to be matched when they are used in two stages.

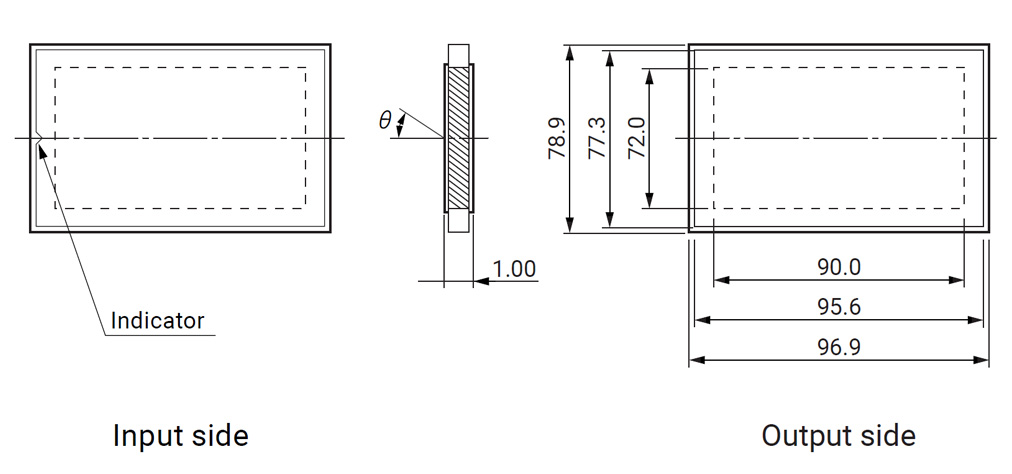

Dimensional outline (Unit:mm)
