Microchannel plate assembly
F13447-11
/e_f13446-11_f13447-11_pp02_xx.jpg/_jcr_content/renditions/thumb-e_f13446-11_f13447-11_pp02_xx.jpg)
MCPs are made of millions to tens of millions of conductive glass capillaries bundled together to form a thin plate.
F13447-11 is a microchannel plate (MCP) assembly featuring an effective diameter of Φ42 mm and supporting floating operation up to ±5 kV.
Specifications
| Items | F13447-11 | Unit | |
|---|---|---|---|
| Number of MCPs | 2 | ー | |
| Effective area | Φ42 | mm | |
| Signal readout | Single anode | ー | |
| Channel diameter | 12 | µm | |
| Pulse width (FWHM) | 1800 | ps | |
| Gain *1 | Min. | 1 × 106 | ー |
| Dark count *1 | Max. | 3 | S-1・cm2 |
| MCP supply voltage *2 | -2.0 | kV | |
| MCP-OUT to anode supply voltage *2 | 0.1 | kV | |
*1: Supply voltage: 1.0 kV/MCP, vacuum: 1.3 × 10-4 Pa, operating ambient temperature: +25 °C
*2: When supplying a maximum of -2.1 kV to the HV electrode
*3: Vacuum: 1.3 × 10-4 Pa

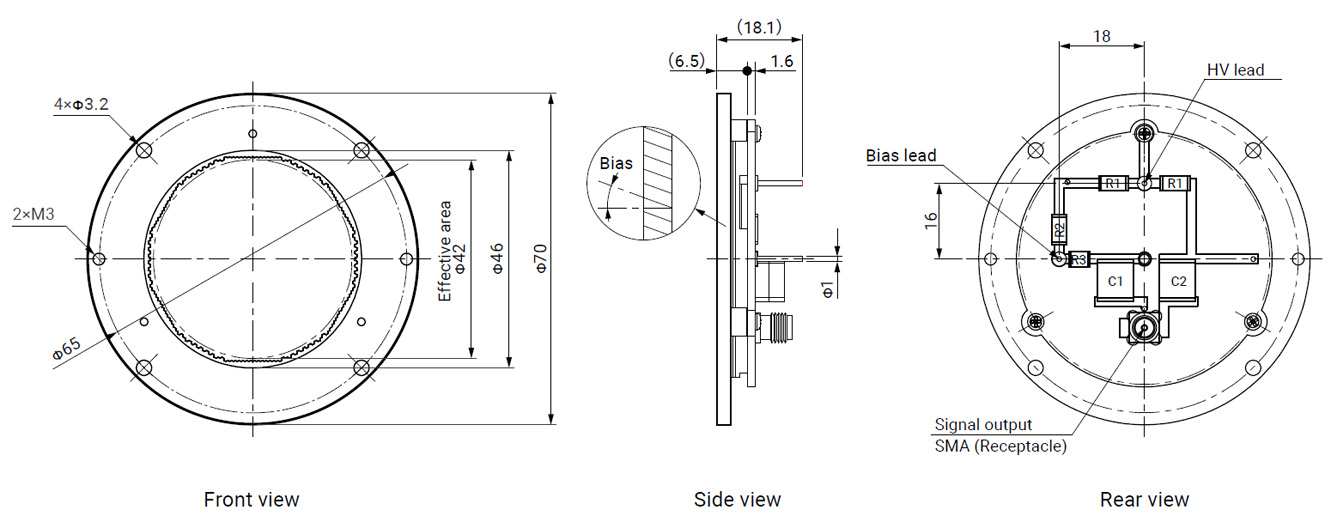

Dimensional outline (Unit:mm)
