CCD area image sensor
HAMAMATSU developed MPP (multi-pinned phase) mode back-thinned FFT-CCDs S7170-0909-01 specifically designed for low-light-level detection in scientific applications. The S7170-0909-01 has sensitivity from the UV to near-IR as well as having low dark current and wide dynamic range. Stabillity of the spectral response curve is also achieved for high precision measurements.
For scientific measurement

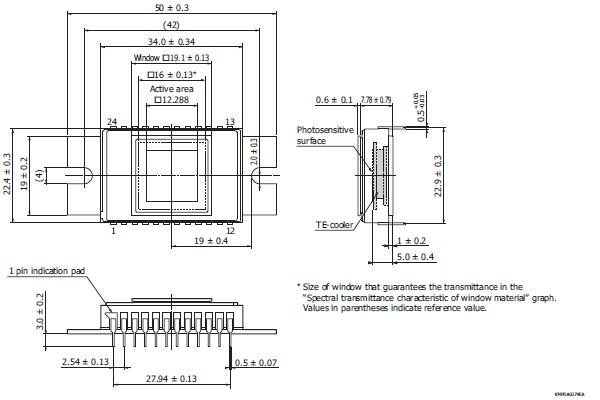

|Image size||12.288 x 12.288 mm|
|Number of effective pixels||512 x 512 pixels|
|Pixel size||24 x 24 μm|

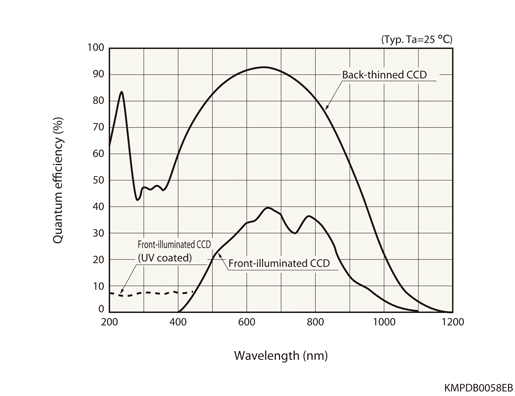

|Spectral response range||200 to 1100 nm|
|Frame rate||0.9 frames/s|
|Dark current (typ.)||100 e-/pixel/s|
|Readout noise (typ.)||8 e- rms|
|Dedicated driver circuit||C7181|
|Note||Two-stage TE-cooled type is available upon request (made-to-order producut)|
|Measurement condition||Typ. Ta=25 ℃, unless otherwise noted, frame rate: area scanning|
