CMOS linear image sensor
The S12198 series are CMOS linear image sensors using a vertically long pixels (25 × 500 μm). They have smoothly varying spectral response characteristics in UV region and employ a gain switch function.
|Type||High-speed readout type|
|Image size||12.8 x 0.5 mm|
|Number of effective pixels||512 x 1 pixels|
|Pixel size||25 x 500 μm|

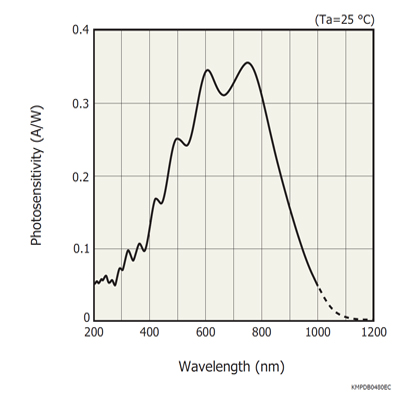

|Spectral response range||200 to 1000 nm|
|Line rate (max.)||18450 lines/s|
