CCD area image sensor
The S13240/S13241 series and S10140/S10141 series (-01) are back-thinned FFT-CCD area image sensors developed for low-light-level detection. By using the binning operation, they can be used as a linear image sensor having a vertically long photosensitive area. This makes them suited for use in spectrophotometry. The binning operation offers significant improvement in S/N and signal processing speed compared with conventional methods by which signals are digitally added by an external circuit. These products feature low noise and low dark current (MPP mode operation). This allows low-light-level detection by making the integration time longer. And, wide dynamic range has been achieved by increasing the saturation charge than that of the previous product (S10140/S10141 series).The S13240/S13241 series is a high-speed readout type, and the S10140/S10141 series (-01) is a low noise type. These prod-ucts have an pixel size of 12 × 12 μm and are available in the photosensitive area ranging from 24.576 (H) × 1.464 (V) mm2 (2048 × 122 pixels) to 24.576 (H) × 6.072 (V) mm2 (2048 × 506 pixels).
High resolution type
|Image size||24.576 x 6.072 mm|
|Number of effective pixels||2048 x 506 pixels|
|Pixel size||12 x 12 μm|

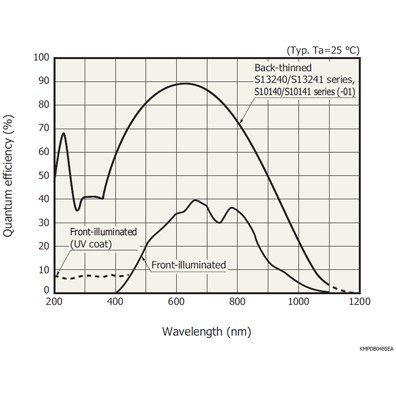

|Spectral response range||200 to 1100 nm|
|Line rate (typ.)||203 lines/s|
|Line rate (max.)||304 lines/s|
|Dark current (typ.)||30 e-/pixel/s|
|Readout noise (typ.)||30 e- rms|
|Measurement condition||Typ. Ta=25 ℃, unless otherwise noted, frame rate: full line binning, Dark current: MPP mode|
