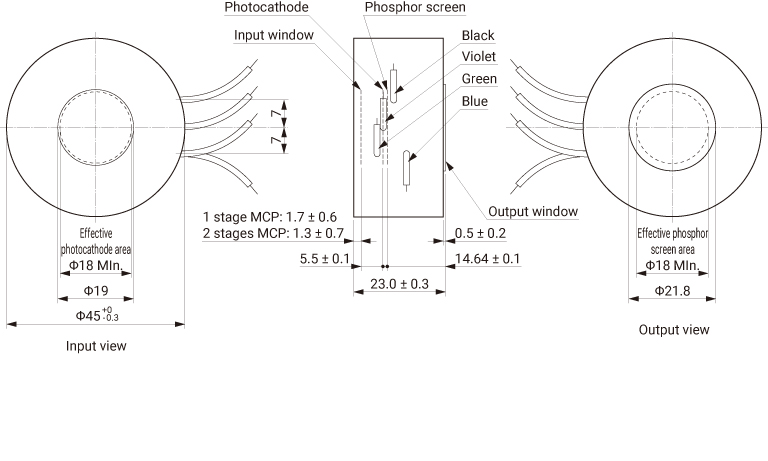

Image intensifier tube
|Feature||Second Generation, High Resolution|
|Spectral Response (Short)||160 nm|
|Spectral Response (Long)||900 nm|
|Spectral Response (Peak)||430 nm|
|Input Window||Synthetic Silica|
|Index of Refraction||1.46|
|Effective Photocathode Area||Dia.18 mm|
|Stage of MCP||1|
|Minimum Gate Time||- ns|
|Luminous Sensitivity||280 μA/lm|
|Radiant Sensitivity||62 mA/W|
|Quantum Efficiency (QE)||18 %|
|Luminous Gain||1.2 x 104 (lm/m2)/lx|
|Radiant Emittance Gain||8.7 x 103 (W/m2)/(W/m2)|
|Equivalent Background Input (EBI)||1.0 x 10-11 lm/cm2|
|Equivalent Background Input (EBI)||3.0 x 10-14 W/cm2|
|Limiting Resolution||64 Lp/mm|
|Operation Ambient Temperature||-20 to +40 ℃|
|Storage Ambient Temperature||-55 to +60 ℃|
|Maximum Shock||300 m/s2 (30G), 18 ms|
|Maximum Vibration||10 Hz to 55 Hz, 0.7 mm (p-p)|
